Used blow moulding-filler-bloc # 10-25238
ecomac Gebrauchtmaschinen GmbH is offering a used Krones Blow Moulder-Filler Bloc for mineral water and carbonated soft drinks, manufactured in 2004.
The machine has a capacity of 14,000 bottles per hour when running 0.5-litre PET bottles and 12,000 bottles per hour when running 1.5-litre PET bottles.
Please refer to our specification for further details.
| Filling Product | Mineral water and soft drinks with 15°C and 8,0g/l CO2 |
|---|---|

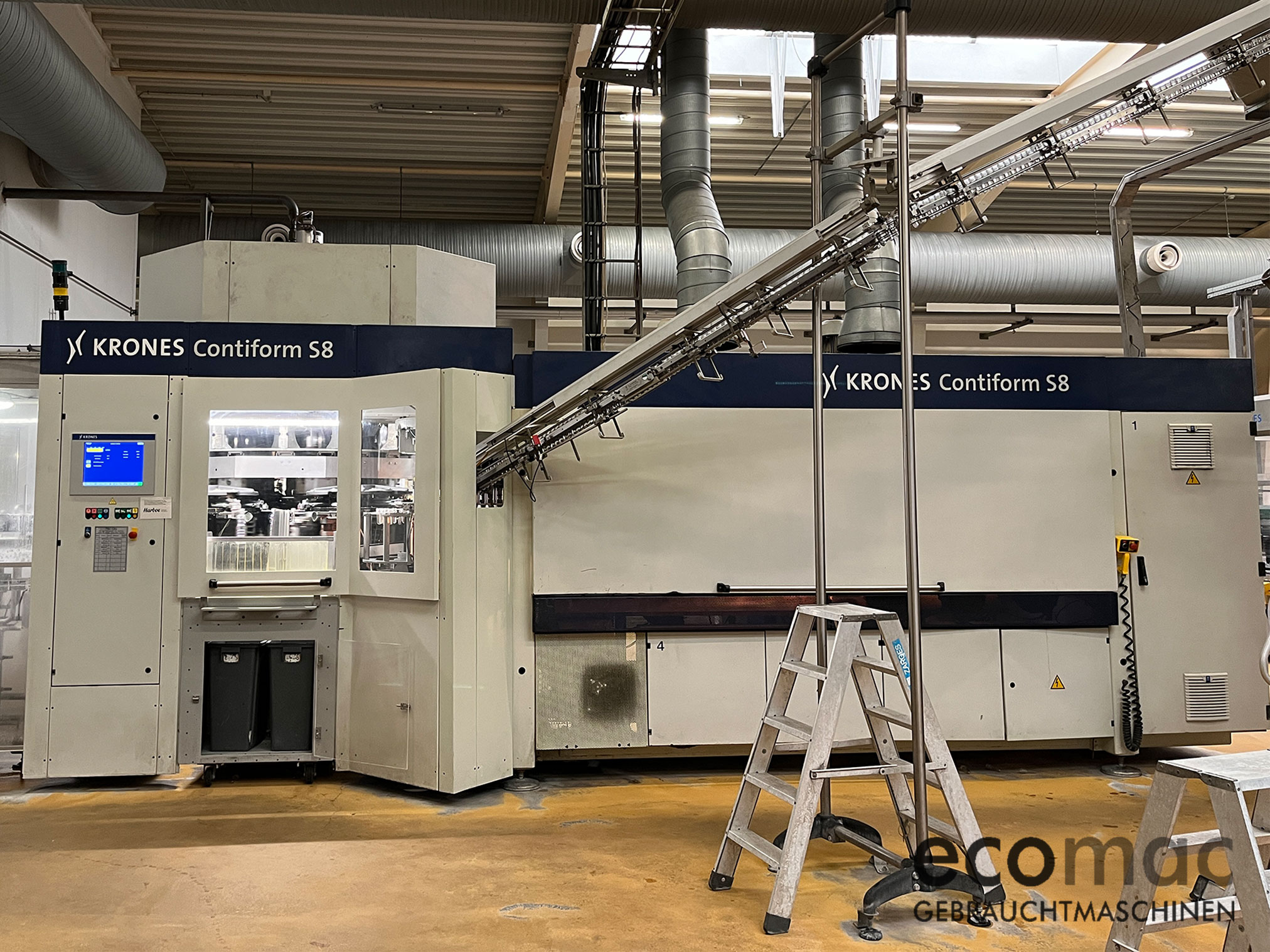

| Blow Moulding Machine | Contiform S08, rotary machine with 8 blowing station |
| Heating module HZM06 with 8 heaters | |

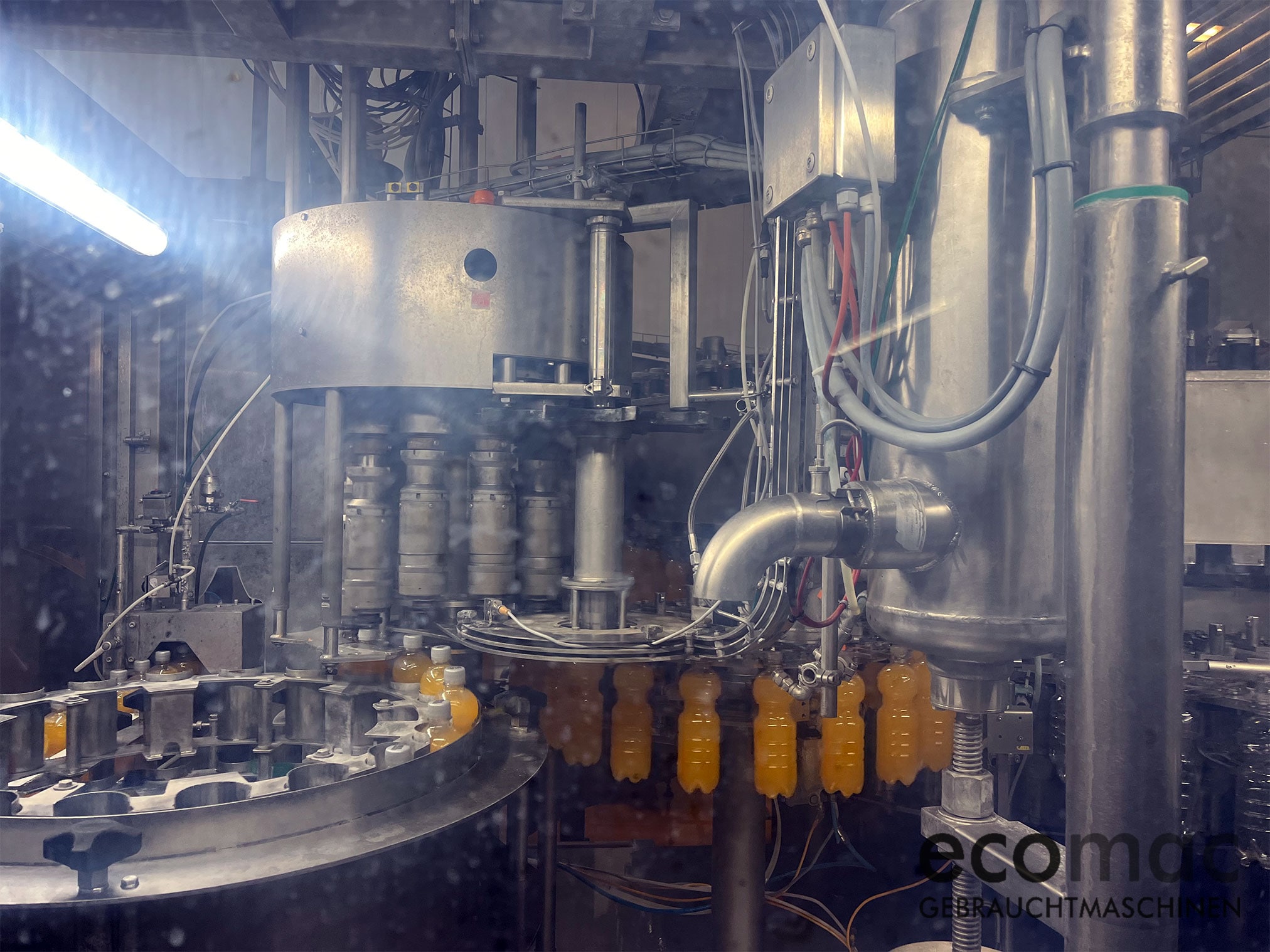

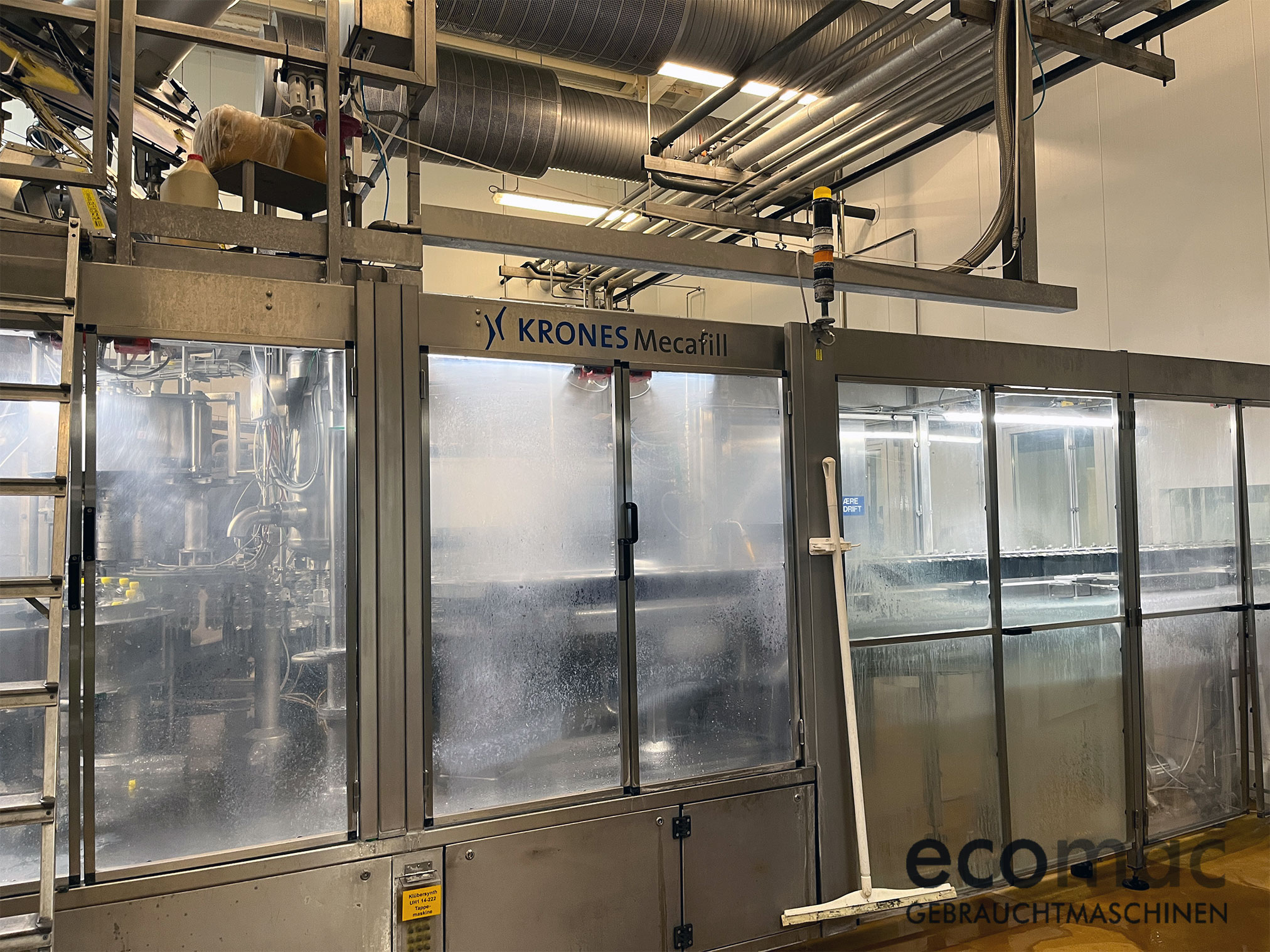

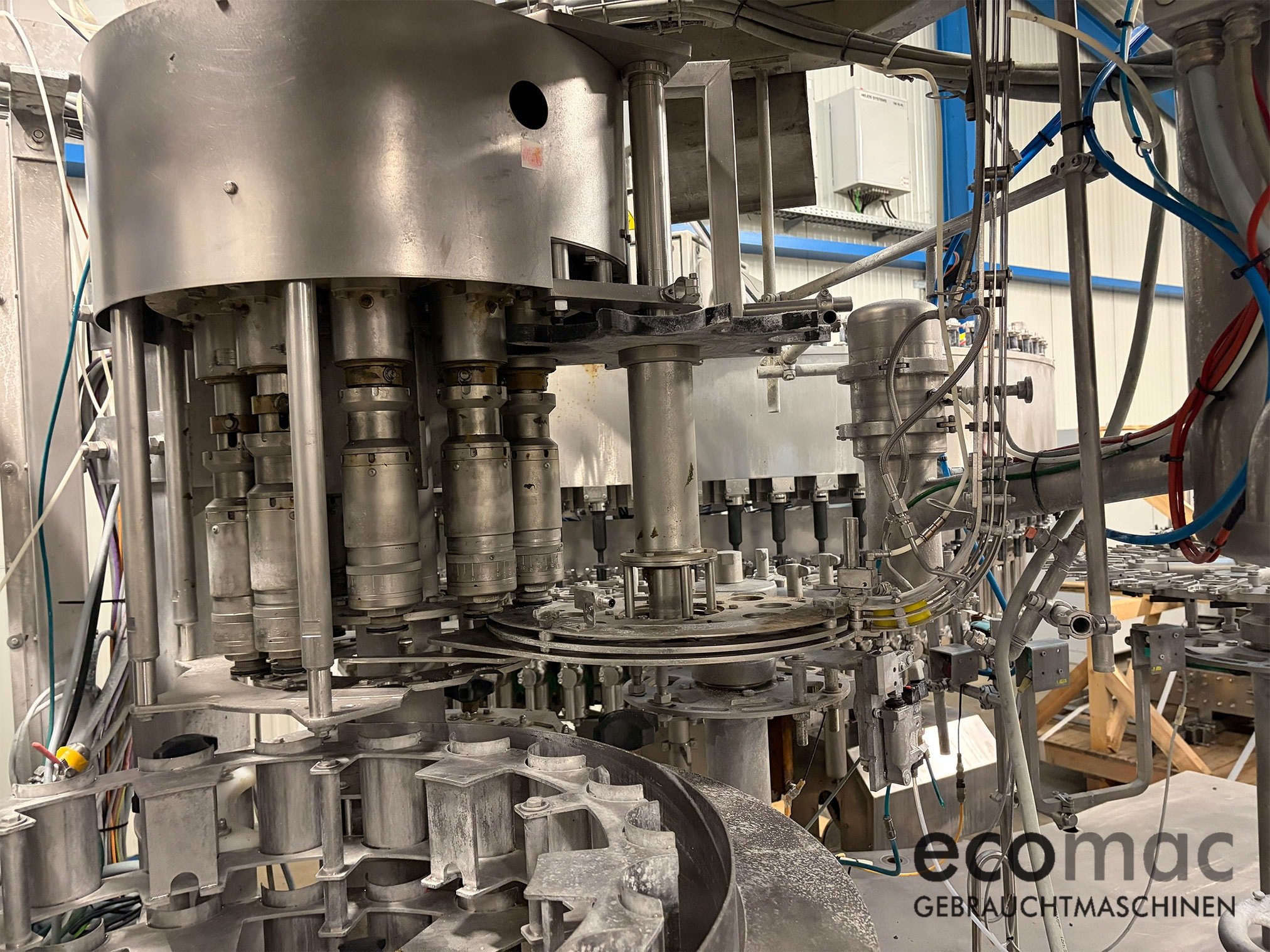

| Filler | Mecafill VKP-PET 2880-80-113 |
| 80 filling valves, pitch 113 mm, | |
| Neck handling system, high-pressure injection system | |
| Automatic Neumo disc valves | |
| Capper | Krones screw capper |
| 10 capping heads, PCO 1810 closure | |
| Pick-and-place cap feeding system, capper cannot be disengaged | |
| Thread spraying system | |
| Power suplly | TN-S-Netz, 230/400 V |
| Frequency | 50 Hz |
| Control system | Siemens S7 300 |
| Inclusive | Preform tipper Tanner |
| Preform feeding unit | |
| KKT Kraus chiller, model KLC50N | |
| Closure feeding system | |
| Without | Moulds |
Details
Number
10-25238
Product
Krones
Model
Contiform S8 / Mecafill VKP-PET 2880-80-113
Performance
14.000 b/h
Equipment
0,5l + 1,5l PET-bottle
Year
2004
Delivery
promptly
Batch
Bloc
