Used Labelling Machine # 10-24603

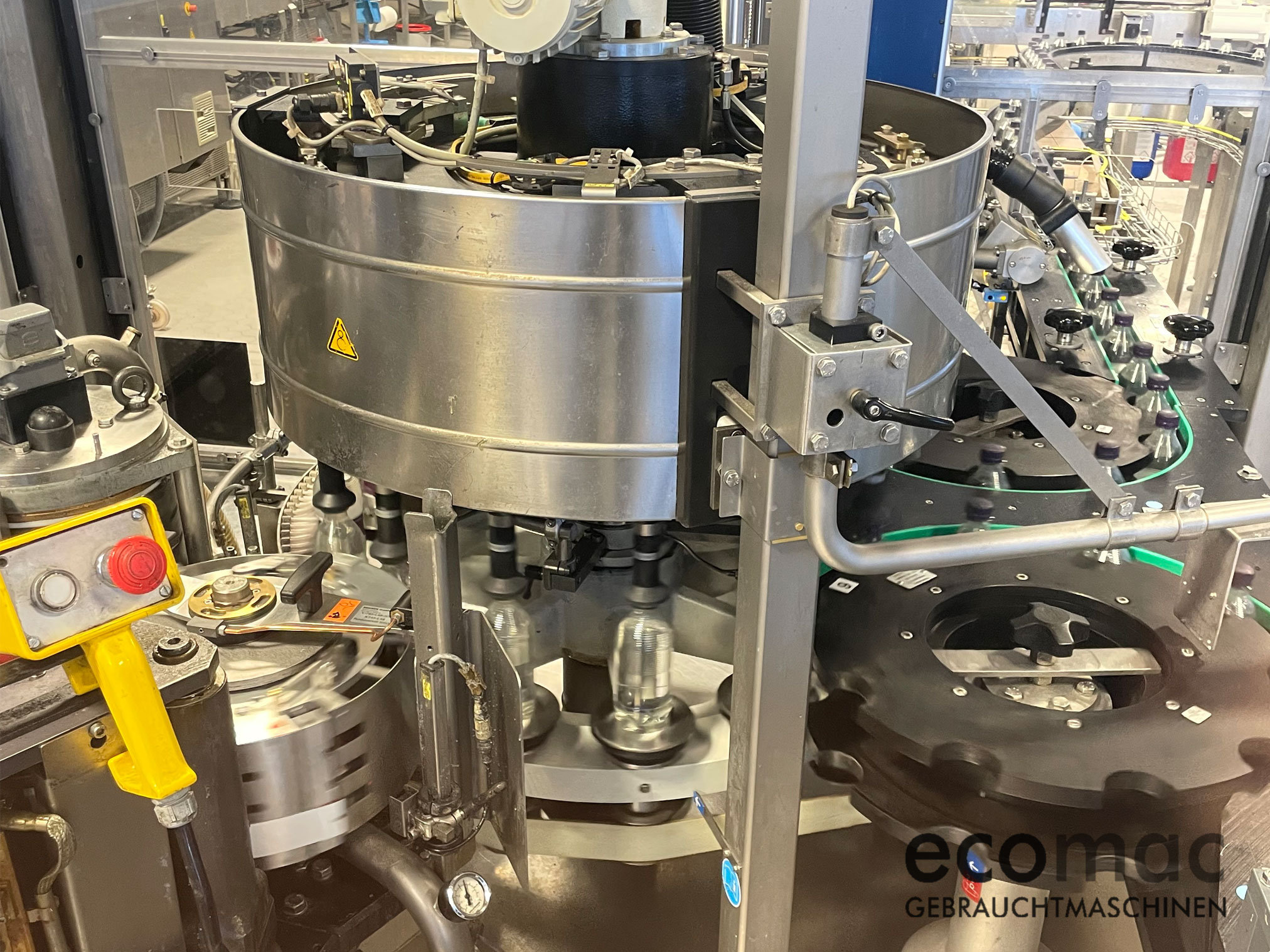

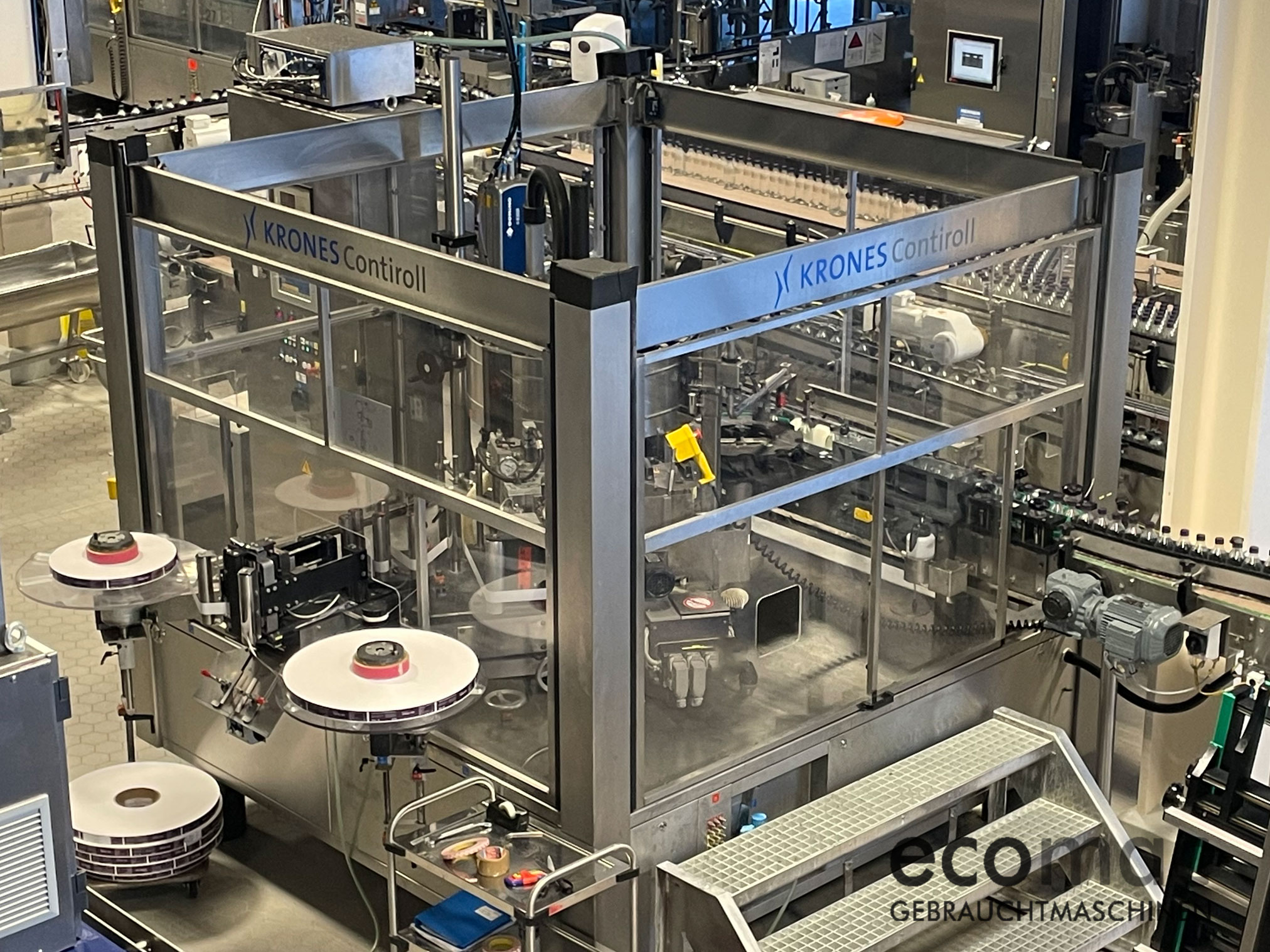

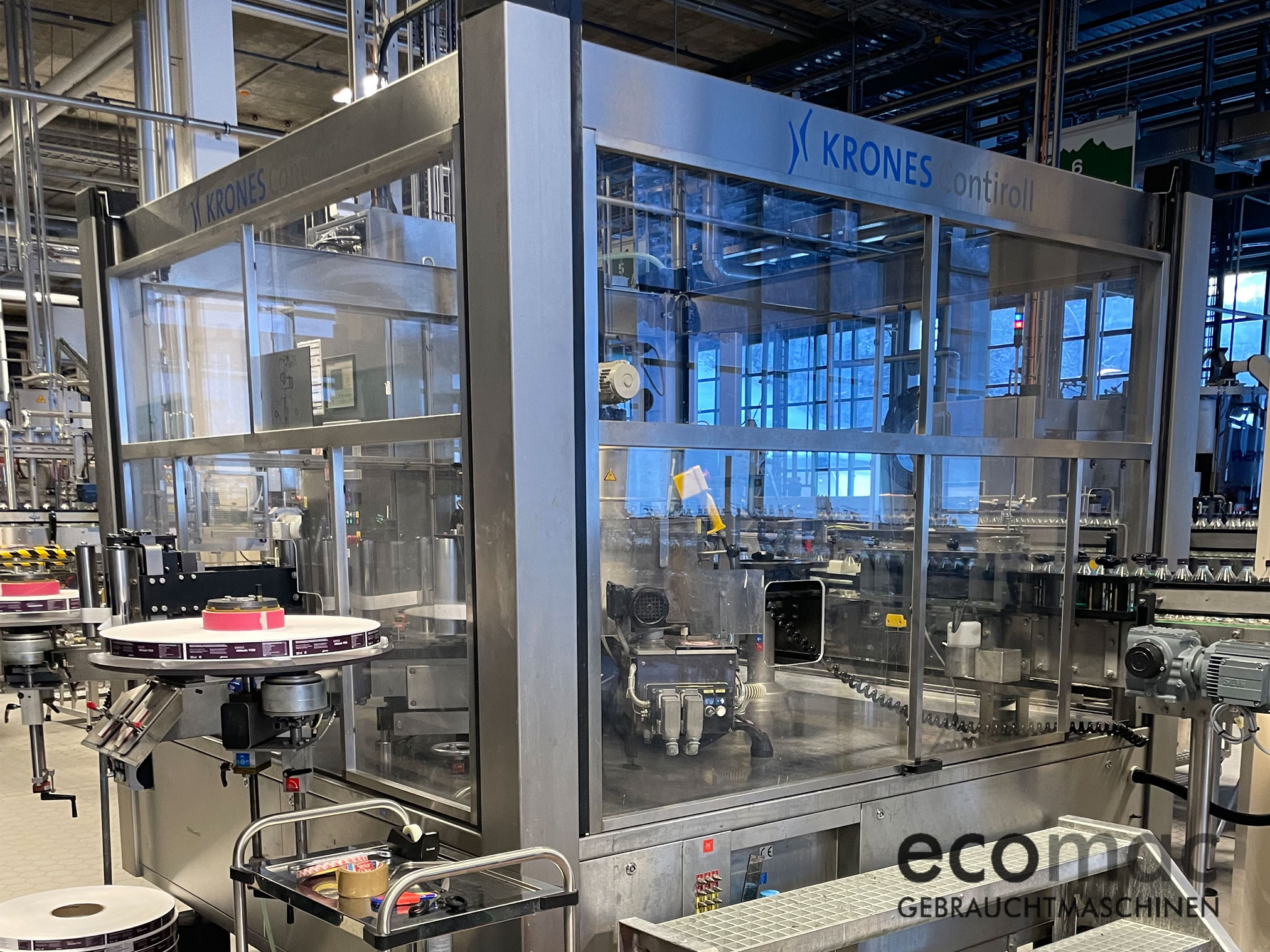

This KORNES labelling machine is for handling PET-bottles with wrap-around label from a reel with hot melt. It was running until February 2025. In any case of interest, the machine can be visited in our factory in Neutraubling.
| Output range | 4.000 - 22.000 bottles/h |
|---|---|
| Execution | Container table with driven belt |
| Container infeed | designed for 2 infeed worms arranged one above the other |
| Labelling station | Contiroll-labelling station 2-3-340 |
| cutter drum diam.240 mm, 2 knives | |
| vacuum-cylinder diam. 36 mm, 3 sections | |
| label length min. 175 - max. 340 mm | |
| height adjustment labelling station | |
| with servo drive for label length adjustment and label web guide | |
| leading and trailing edge gluing with hotmelt | |
| reel holder for two label reels - automatic splicing | |
| reel core diameter min. 150 - max 600 mm outer diameter | |
| register mark detection with colour contrast sensor | |
| height adjusment manual | |

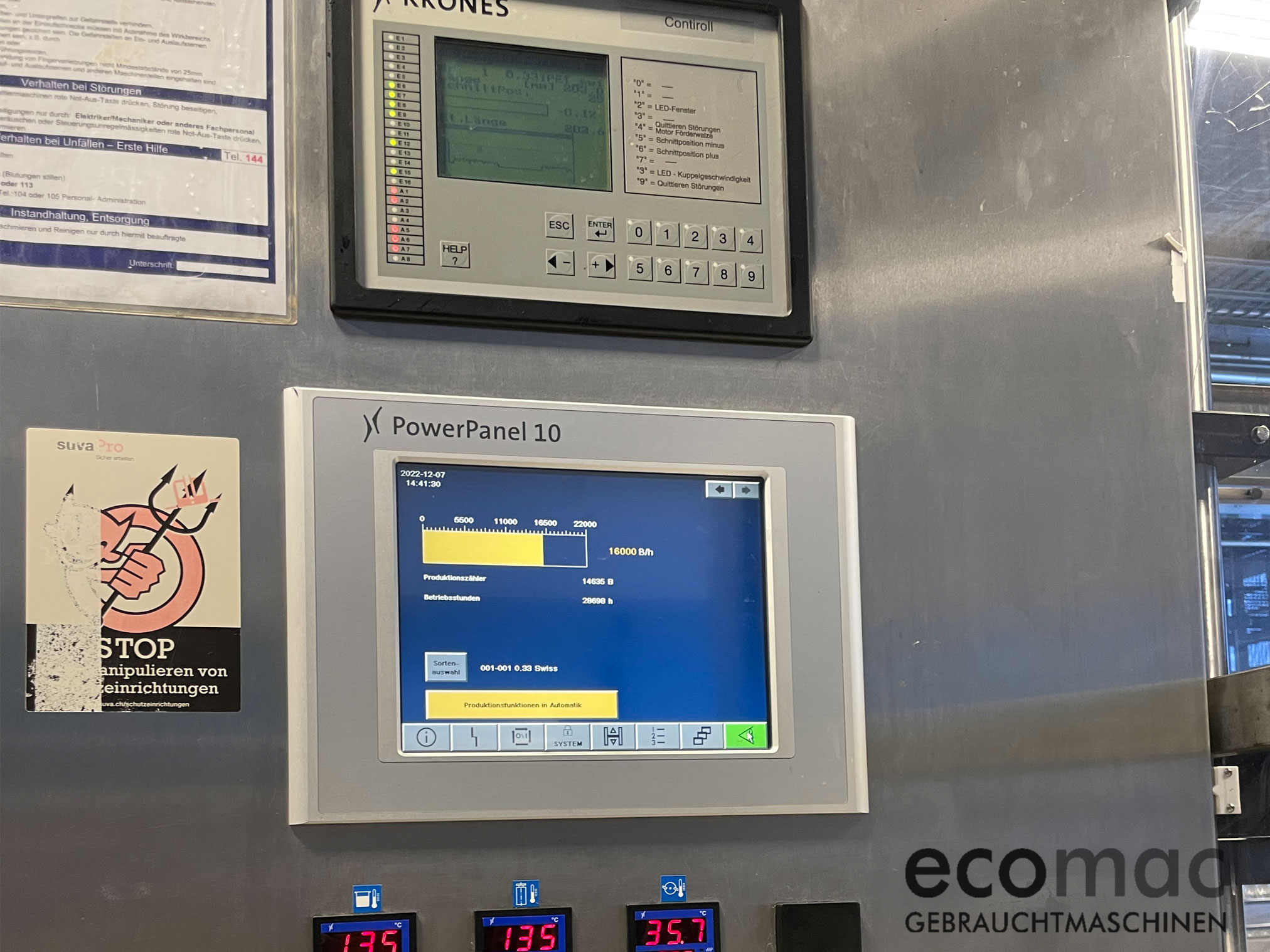

| Operation | 15" colour display with ZenOn |
| Kind of current | 230 / 400 V, 50 Hz, TN-S-net |
| Control Unit | Siemens S7 300 |
Details
Number
10-24603
Product
Krones
Model
Contiroll 720-15
Performance
20.000 b/h
Equipment
Wrap
Year
2006
Delivery
promptly
Batch
standard
Direction
L-R
