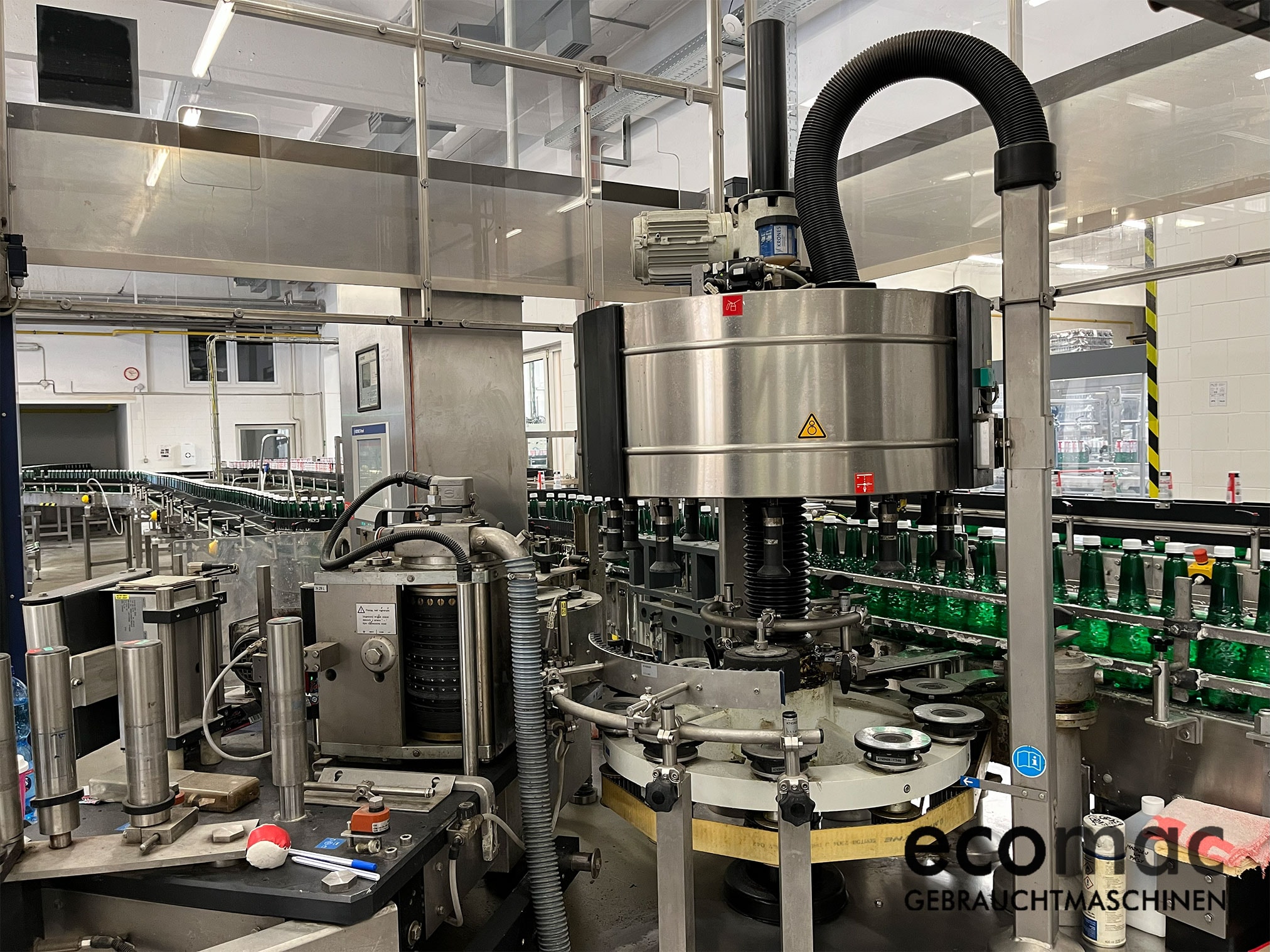

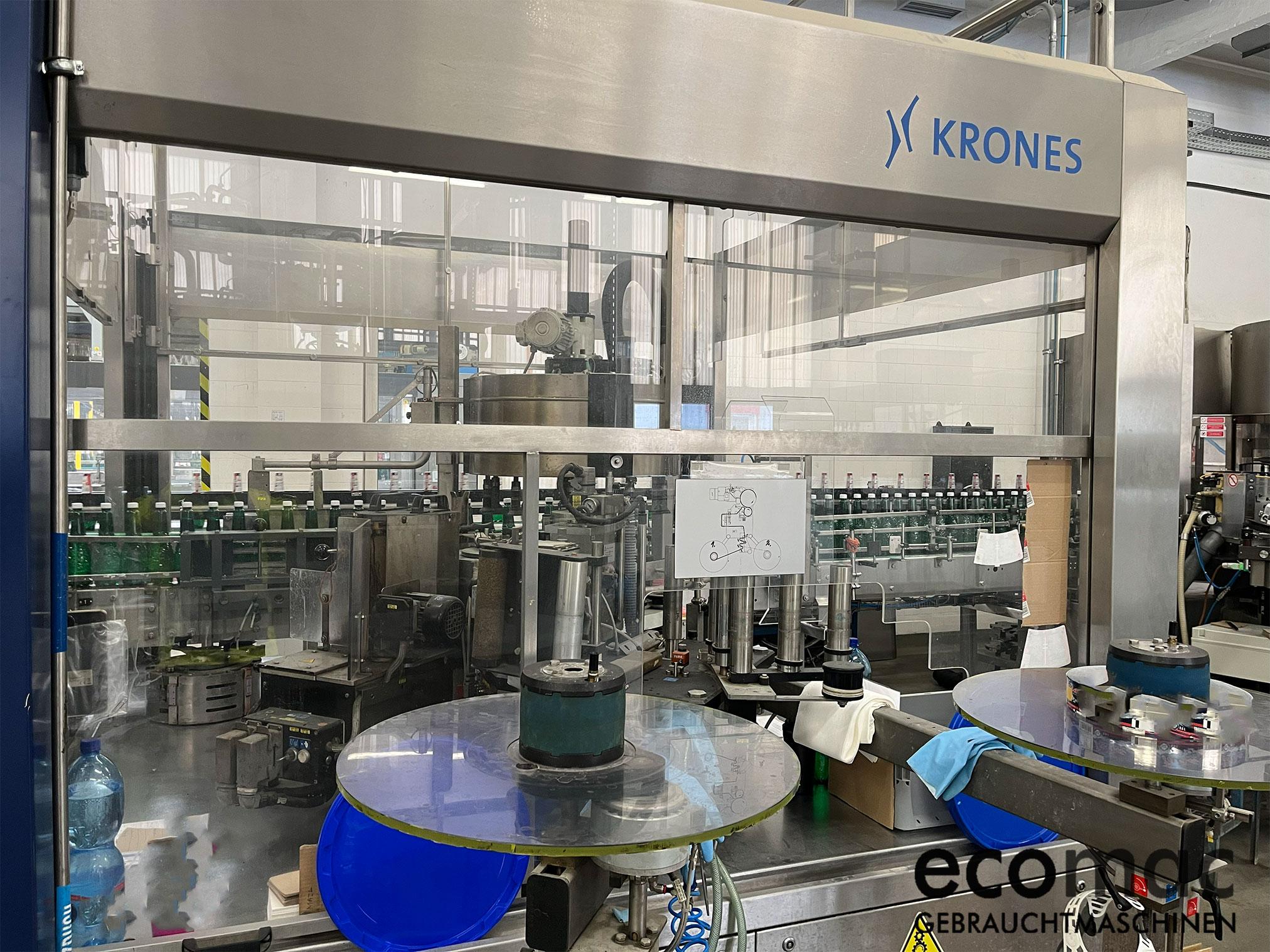

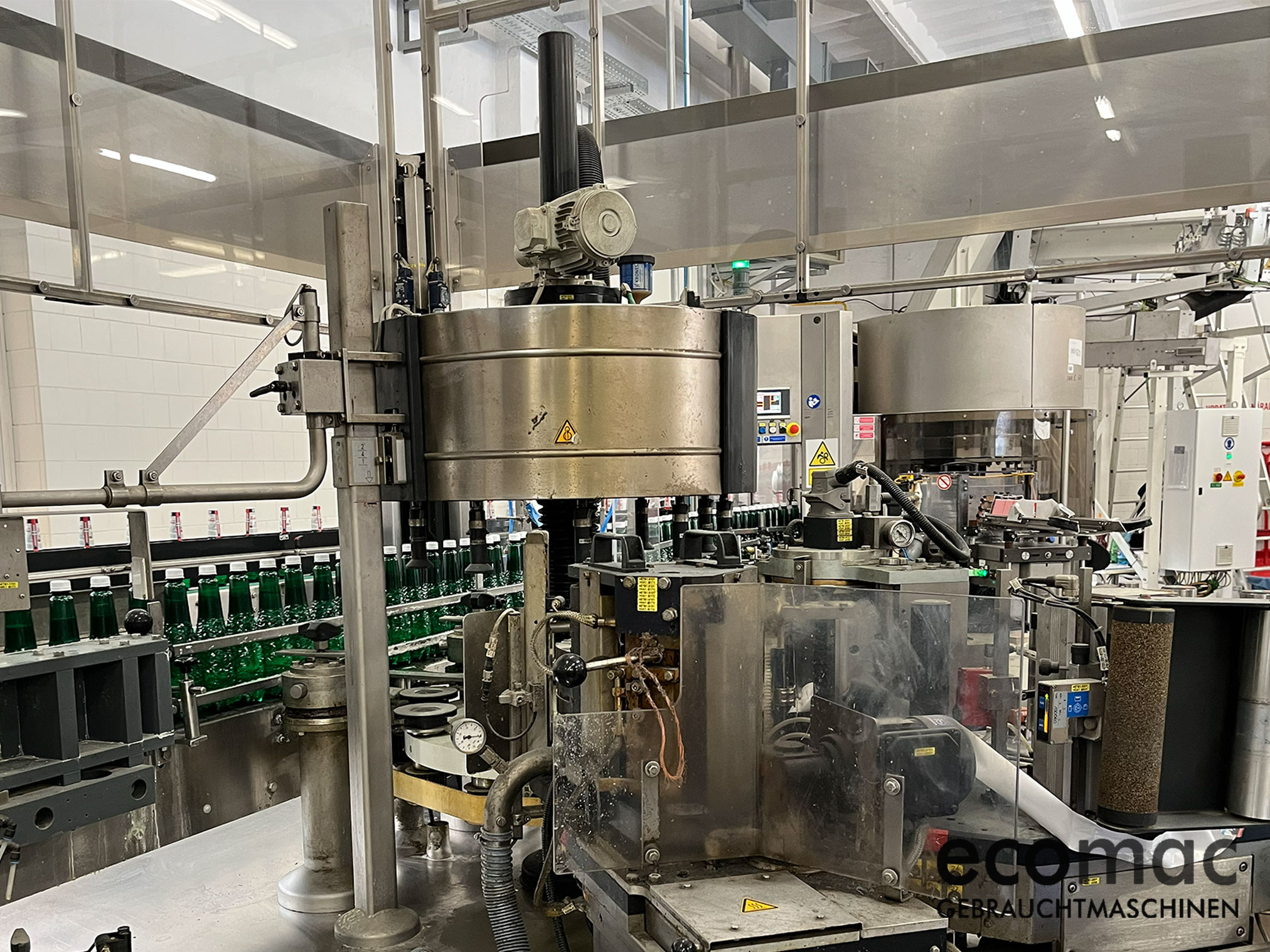

Used Labelling Machine # 10-24898
This labelling machine is for wrap-around labels from a reel. The labels will be fixed on the bottles with hotmelt and leading/trailing-edge gluing. If you have any further questions, please feel free to contact us.
| Labelling station | 1 Contiroll labelling station |
|---|---|
| Label length min. 145 mm - max. 400 mm | |
| for 2 label reels - manual splicing | |
| leading and trailing edge gluing | |
| register mark detection unit with colour contrast sensor | |
| height adjustable | |
| Container infeed | suitable for 2 infeed worms one above the other |
| Container table | with driven belt |
| Equipment | Height adjustment machine head motorised |
| Container gap detector in carrousel | |
| Operation | 15" colour display with ZenOn |
| Kind of current | TN-S-net, 400 V, 50 Hz |
| Control Unit | Siemens S7 300 |
Details
Number
10-24898
Product
Krones
Model
Contiroll 600-10
Performance
10.000 b/h
Equipment
Wrap-aorund label from a reel
Year
2007
Delivery
Feb 2026
Batch
Standard
Direction
R-L
Download
Download Sheet #10-24898Download entire machine list
