Used Labelling Machine # 10-24904

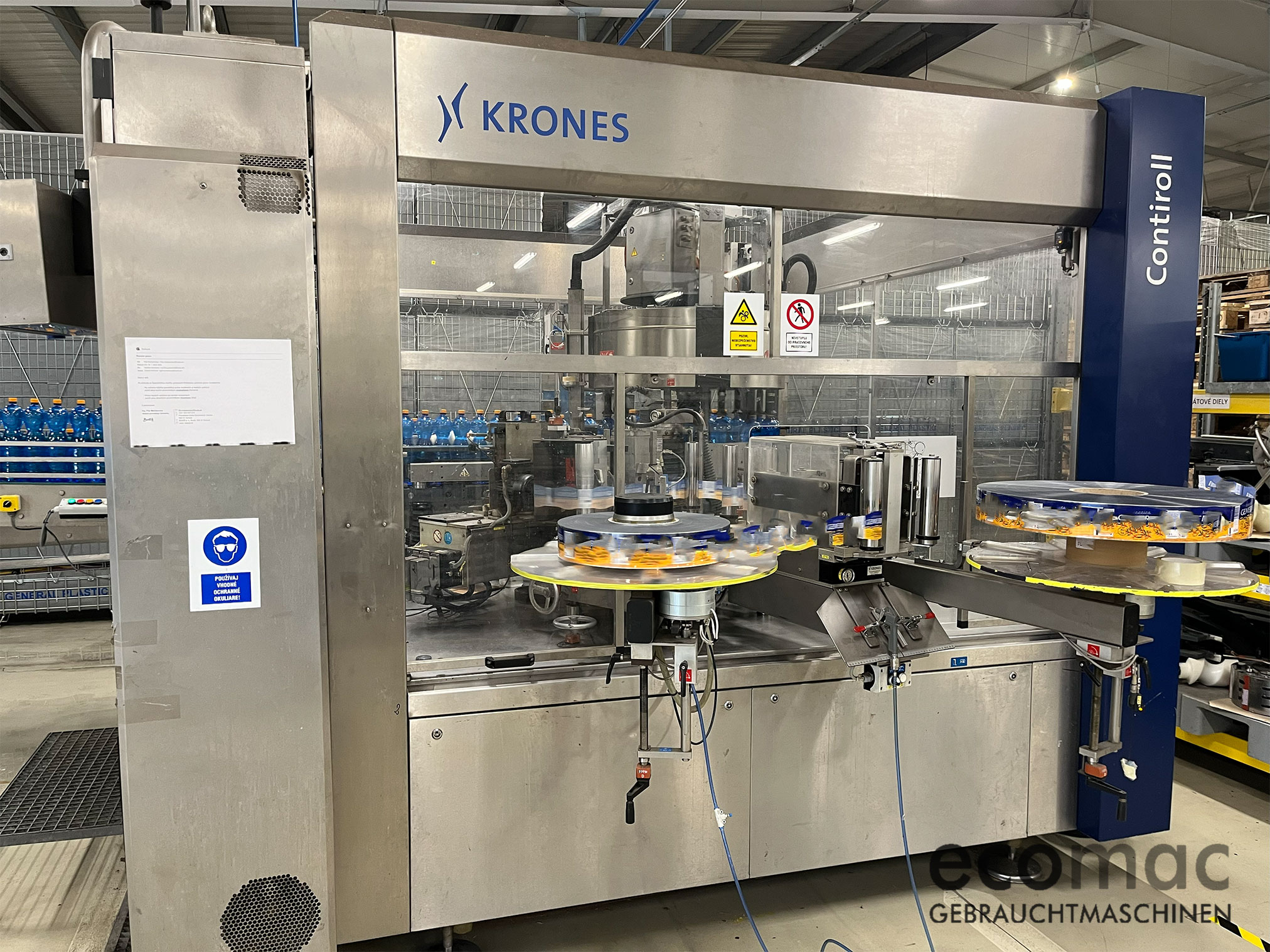

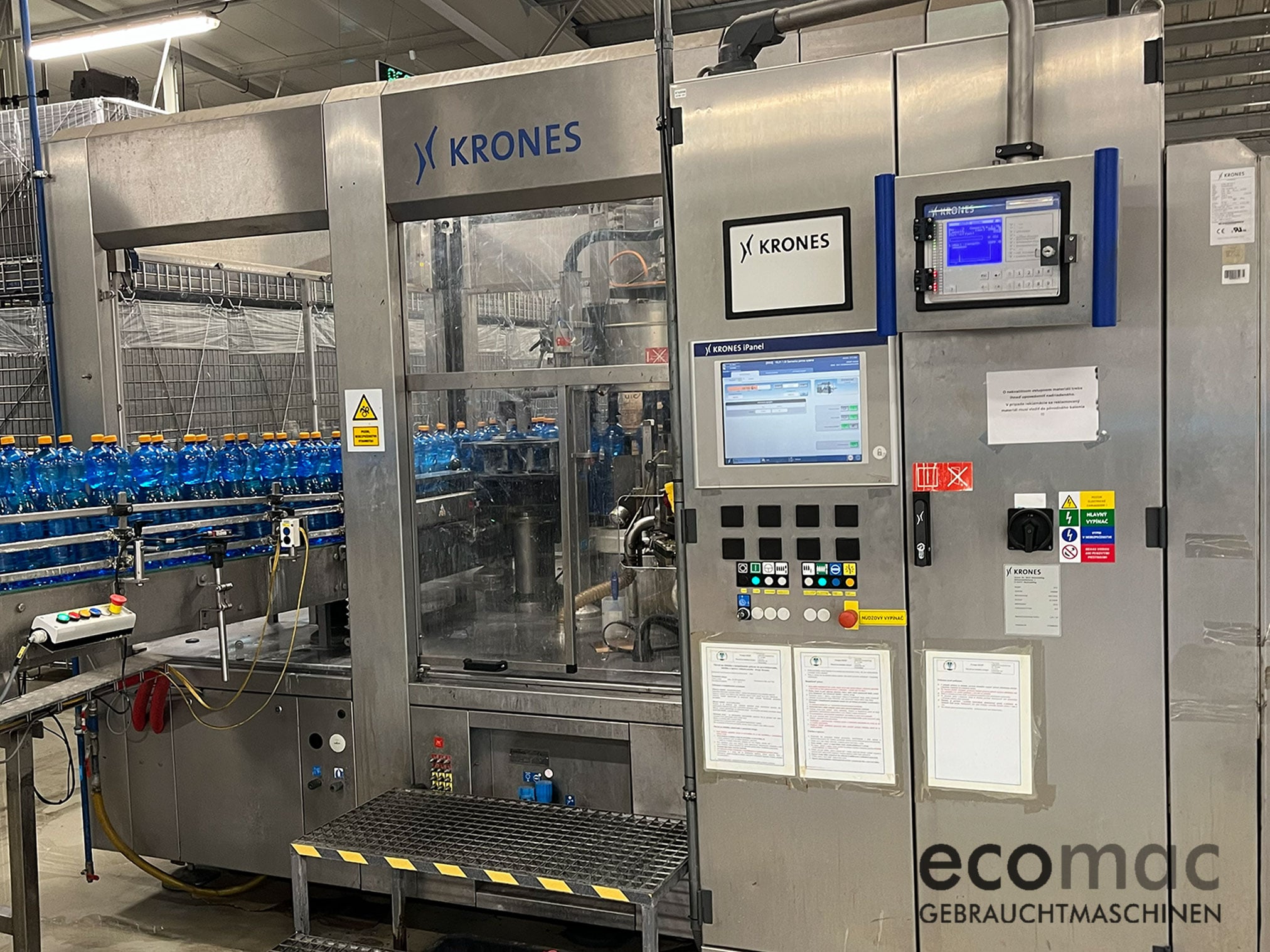

This Krones Contiroll applies wrap-around labels from a reel to PET bottles using hot melt. The machine was built in 2011 and is available for inspection upon request. We look forward to hearing from you.
| Labelling Station | Contiroll labelling station |
|---|---|
| Label length min. 175 - max. 340 mm | |
| Cutter drum D = 240 mm, 2-parts | |
| Vacuum-grip cylinder D = 360 mm, 3-parts | |
| height adjustable | |
| leading- and trailing edge gluing- und Endbeleimung | |
| Execution | reel holder decive suitable for 2 label reel - automatic splicing |
| register mark detection with colour contrast sensor | |
| height adjustment manual | |
| detection of absolute reel end (requirment marking) | |
| Container infeed | suitable for 3 infeed worms (2 obove each other and 1 opposite) |
| Container table | with Danfoss servo drives |
| Operation | 15" colour display with ZenOn |
| Control unit | Siemens S7 300 |
| Kind of current | TN-S-net, 400 V, 50 Hz |
Details
Number
10-24904
Product
Krones
Model
Contiroll 720-15
Performance
26.000 b/h
Equipment
Wrap-around label from a reel
Year
2011
Delivery
Feb 2026
Batch
paralell
Direction
R-L
