Used Labelling Machine # 10-25236

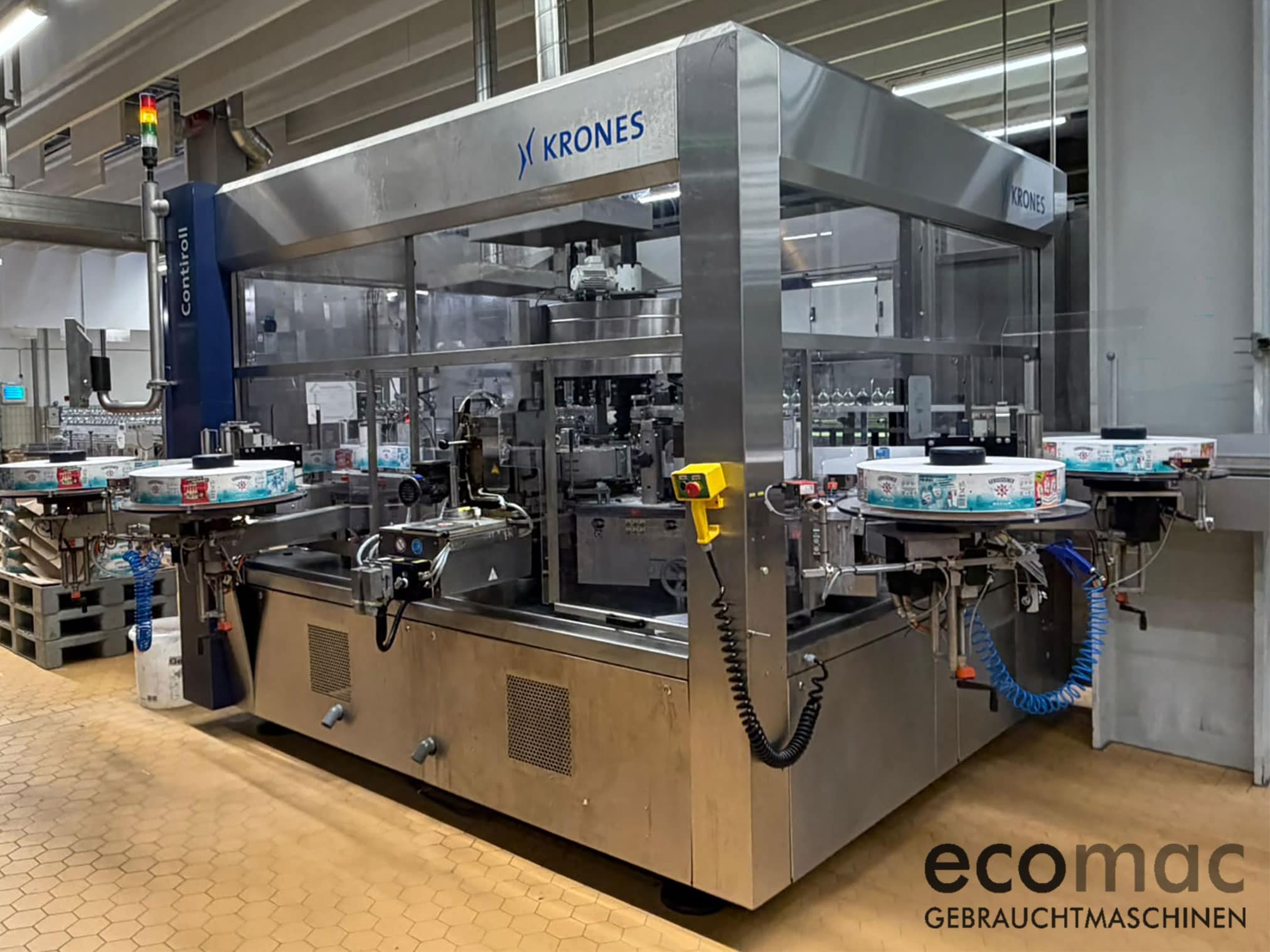

We are offering a used Krones Contiroll labelling machine for sale. The machine is suitable for the application of wrap-around labels from a roll on PET bottles. Further information and technical details are available upon request.
| Output range | 7.500 - 49.000 bottles/h |
|---|---|
| Number of bottle plates | 24 pieces |
| Number of labelling stations | 2 pieces |
| Labelling Station I | cutter drum D=250 mm, 2-pcs |
| vacuum-grip cylinder D=500, 4-pcs. | |
| label length min. 130 mm - max. 370 mm | |
| adjusted for 2 label reels - automatic slpicing | |
| register mark detection unit with colour contrast sensor | |
| Labelling Station II | cutter drum D=250 mm, 2-pcs |
| vacuum-grip cylinder D=500, 4-pcs. | |
| label length min. 130 mm - max. 370 mm | |
| adjusted for 2 label reels - automatic slpicing | |
| register mark detection unit with colour contrast sensor | |
| Bottle tabel | with driven belt |
| Machine safety | Full Safety Lift Versoin |
| Operation | via Touchscreen 15" colour display |
| Voltage | 230/400 V |
| Control cabinet | on the machine |
| Control Unit | Siemens S7 300 |
Details
Number
10-25236
Product
Krones
Model
Contiroll 960-24
Performance
48.000 b/h
Equipment
Wraparound label from a reel
Year
2007
Delivery
Dec 2026
Batch
standard
Direction
R-L
Download
Download Sheet #10-25236Download entire machine list
