Used Flash pasteurizer # 10-25246

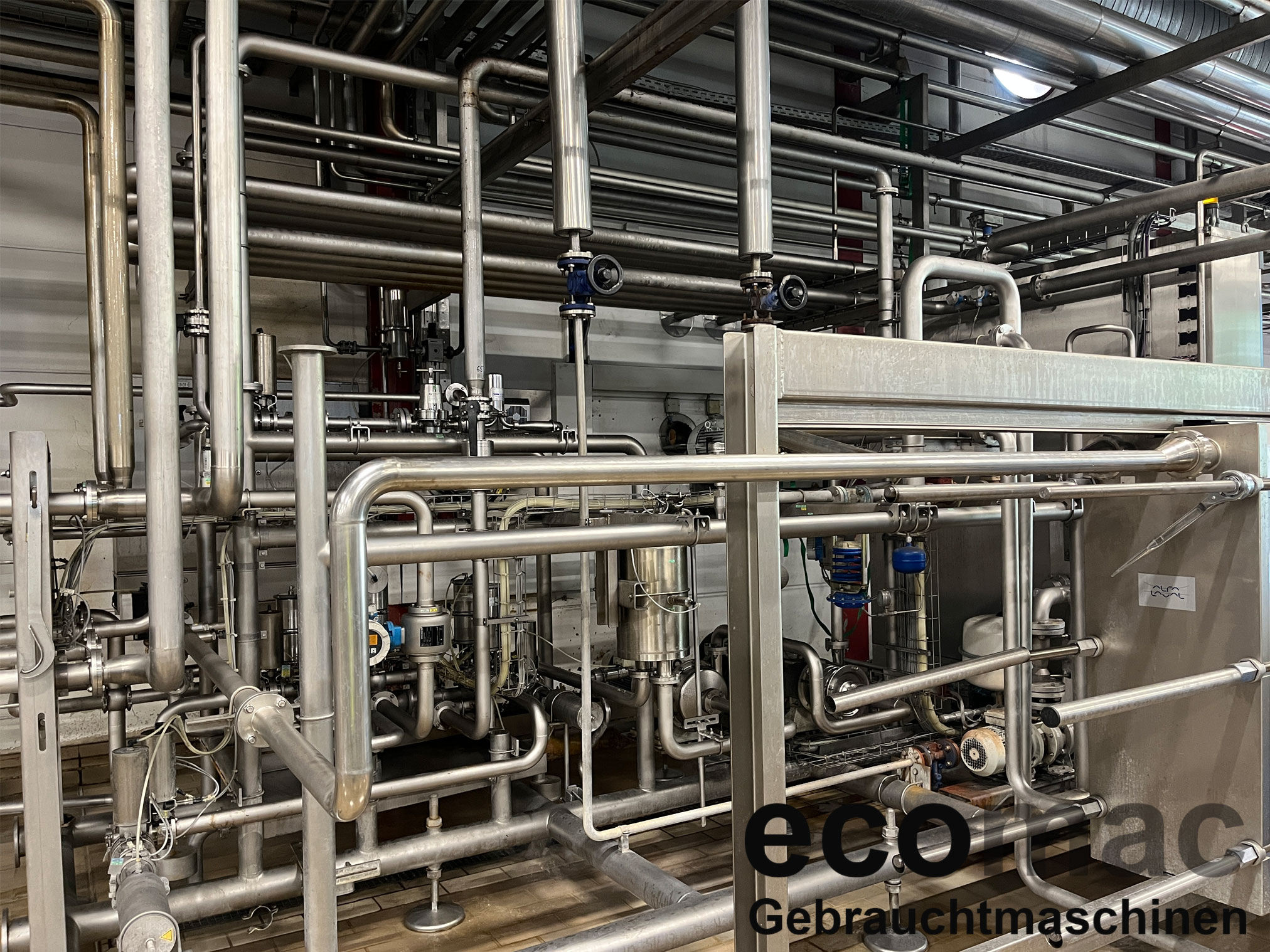

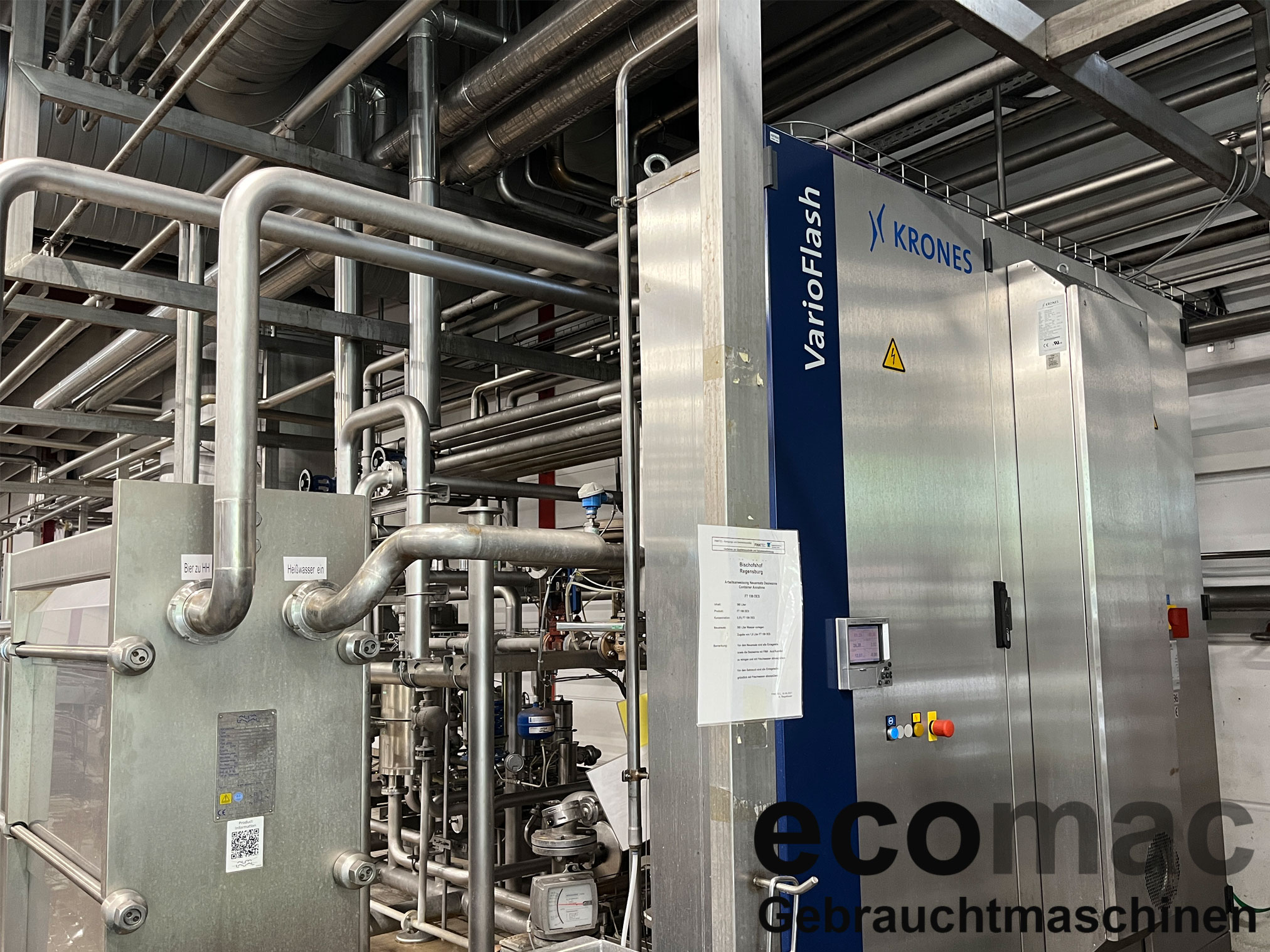

The Flash pasteurzier (KZE) is an established thermal process for the biological stabilization of beer. The Krones Varioflash B manufactured in 2008 and with a capacity of up to 150hl per hour prepares the product for filling in an energy-efficient and gentle manner.
A Visit with inspection is with an appointment possible.
Further details on request or in our specification # 10-25246
| Product | Beer top fermented and bottom fermented, beer mix beverages |
|---|---|
| Co2-content: max. 7,5g/l | |
| Execution | Without cooling step |
| Product infeed temperature 0-3 bis 7-8°C | |
| Product outfeed temperature 3-6 bis 10-11°C | |
| Energy recovery: approx. 96% | |
| Pasteurizsation temperature 72-76°C | |
| Holding time 30 sec. | |
| Consisting of | |

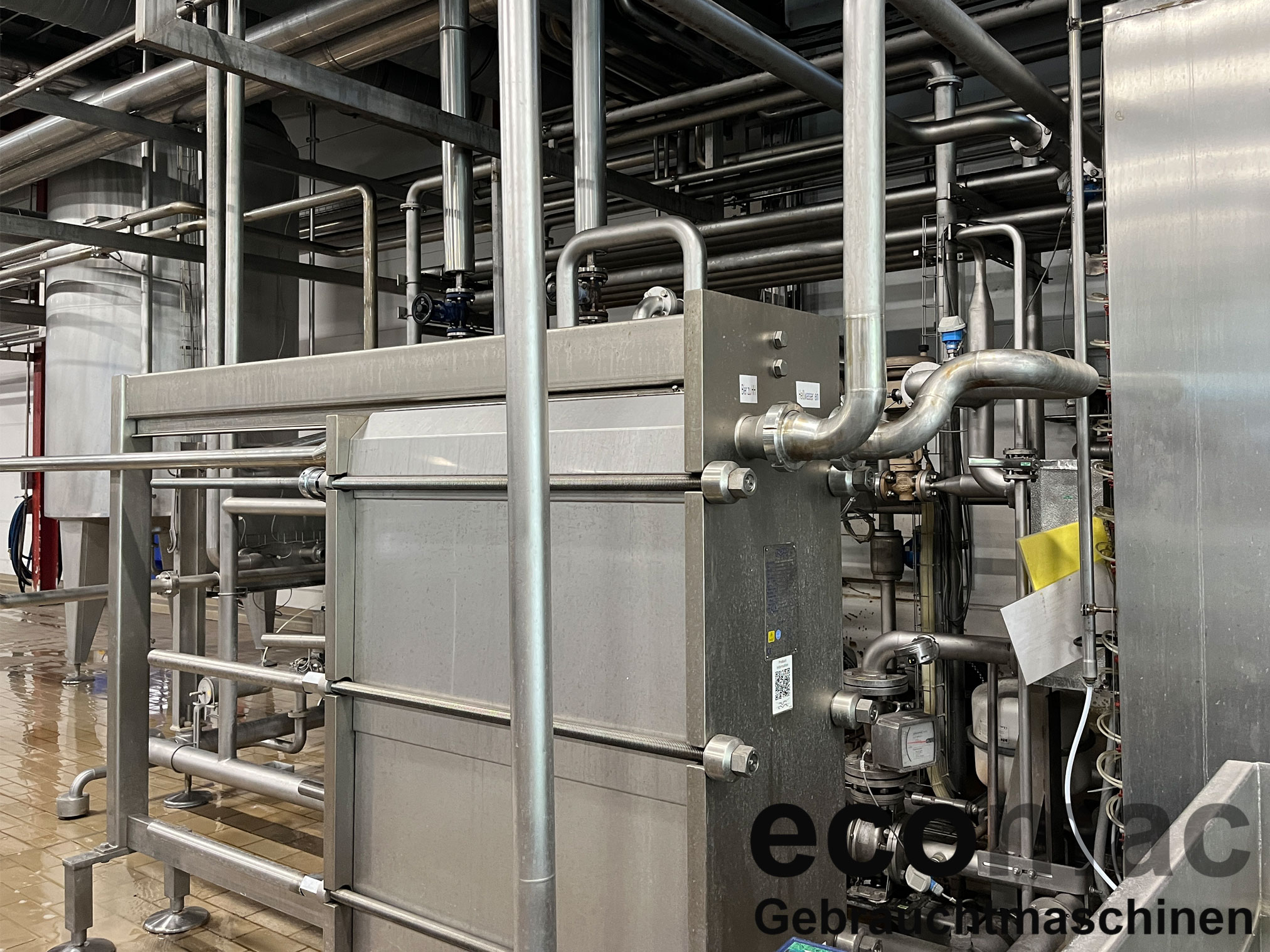

| Plate heat exchanger | With 2 departments |
| Recuperation zone, heat recovery | |
| Heater zone with temperature control | |
| Tubular heat retainer | In compact, not insulated execution |
| With fix length for achievment of constant pasteurisation unit | |
| PU-controller in dependent of temparture and flow | |
| Secondary water dircuit | Inclusive plate heat exchanger |
| With temperatur controller and recirculation pump | |
| Expansion tank and necessary instruments | |
| Product pumps | Product infeed pump |
| Pressure pump | |
| Product pump | |
| Puffer tank | Content netto 6000l |
| Insulated | |
| Pivoting bend connection panel | With 8 connection points |
| Manual butterfly valve | |
| Heat steam connection | The steam feeding to the hot water preparation is controlled with control valves. |
| Control unit | Siemens S7 300 |
| Current datas | TN-S-Netz, 400V, 50Hz |
Details
Number
10-25246
Product
Krones
Model
Vario Flash B
Performance
60-150 hl/h
Equipment
2-steps, Exchanger, Heater
Year
2008
Delivery
January 2027
