Used Palletizer # 10-25237

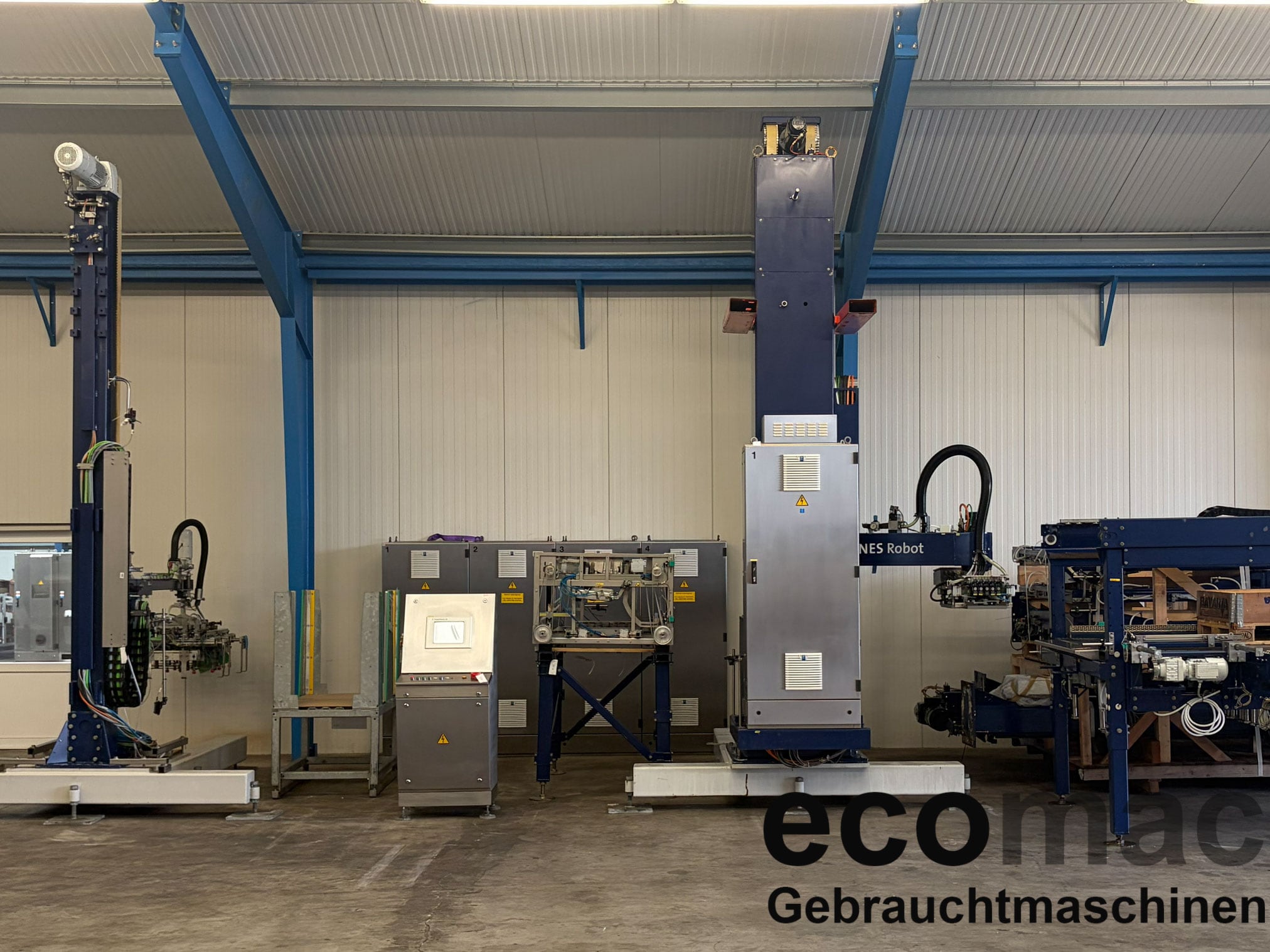

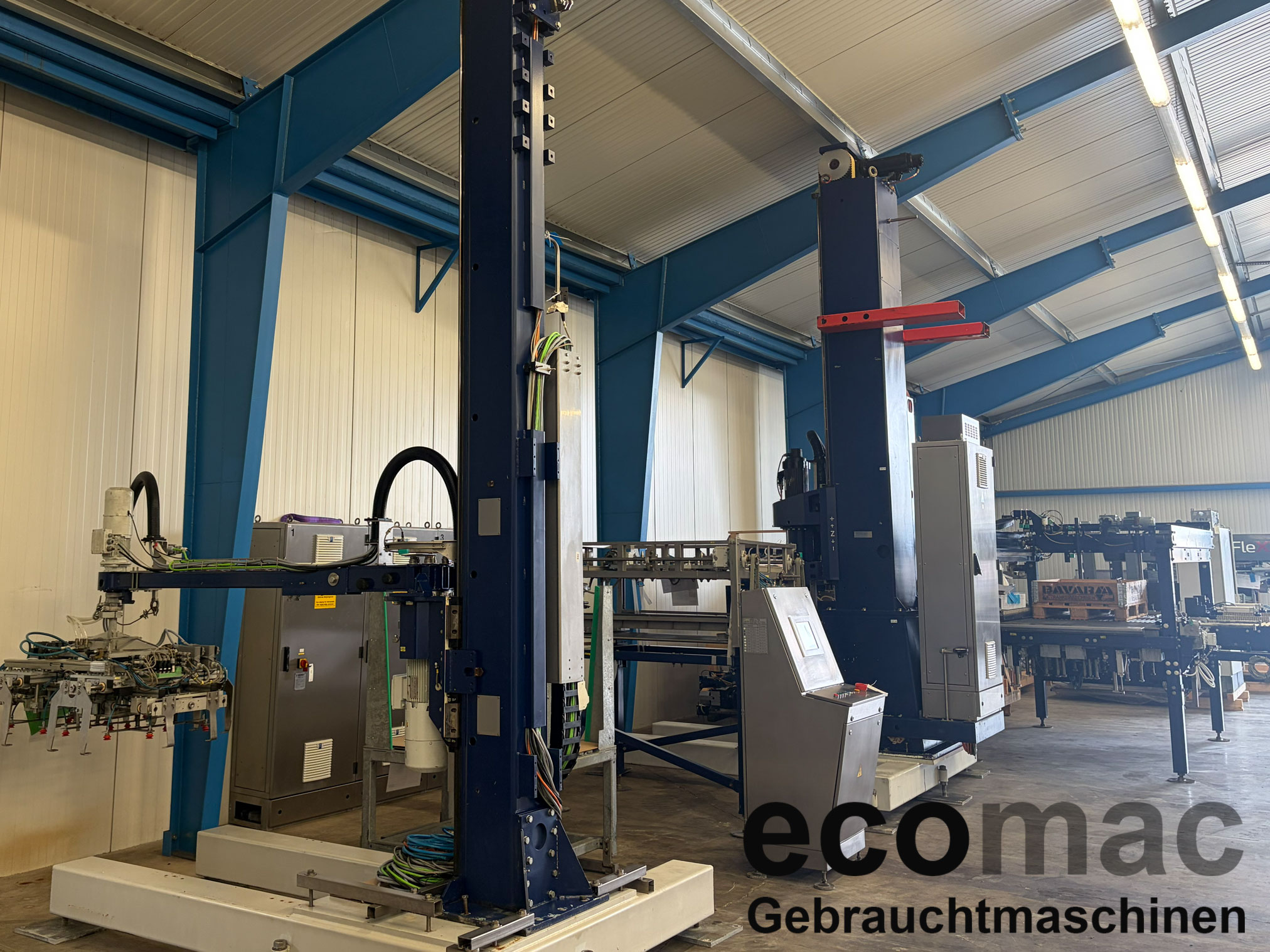

ecomac Gebrauchtmaschinen GmbH offers a used palletizer for shrink packs on Euro pallets and Euro half pallets. The machine was manufactured in 2004, has already been dismantled, and can be inspected at any time by prior appointment.
We would be pleased to receive your inquiry and remain at your disposal for any further information.
| Performance | 12.000 bottles/h with 1,5l in shrink packs (3x2) |
|---|---|
| 2.400 packs/h | |
| 240 layers/h | |
| Design features | dual-lane pack infeed |
| pneumatic internal pack turning device | |

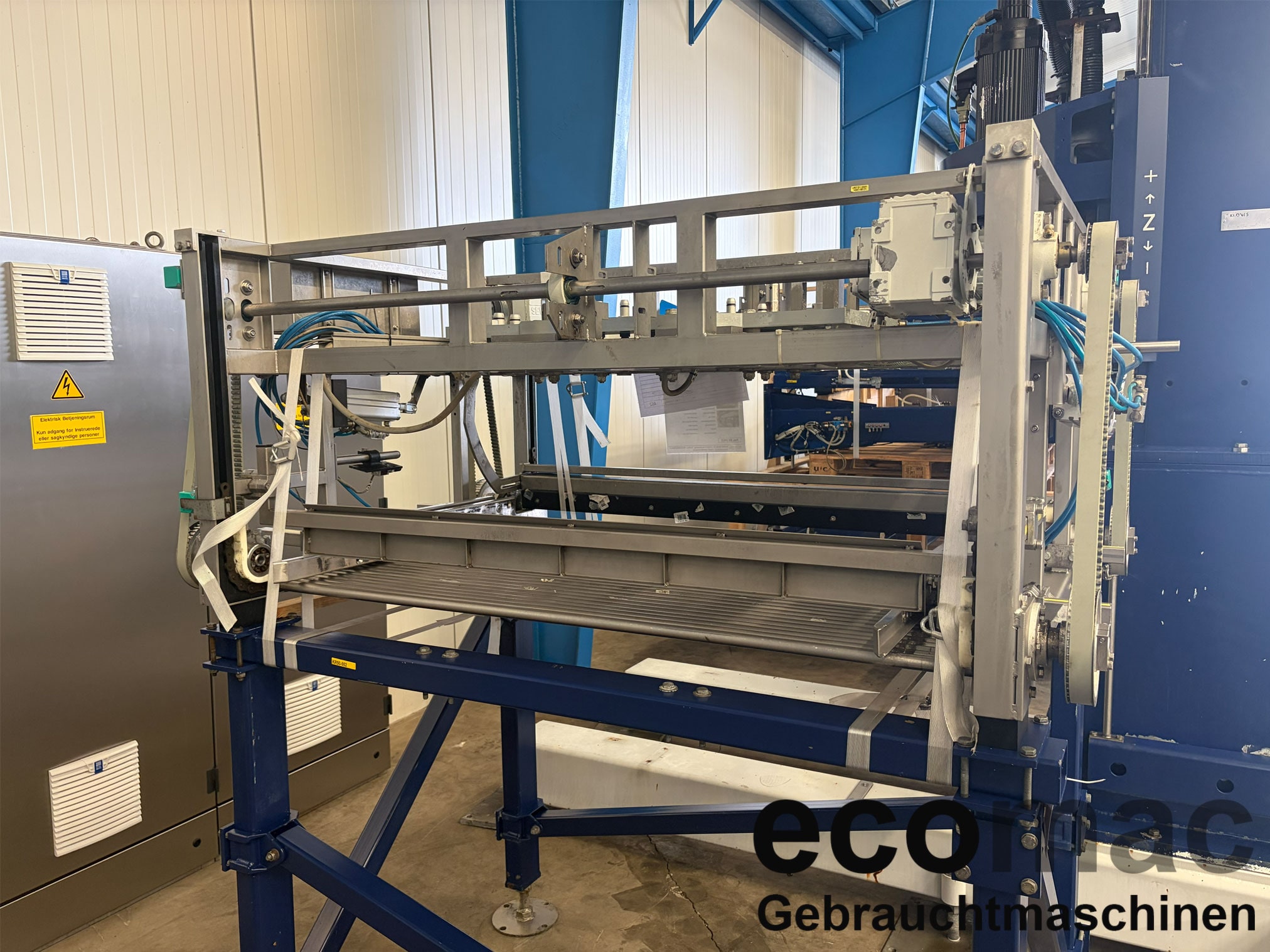

| grouping station with metering conveyor | |
| layer centering unit | |

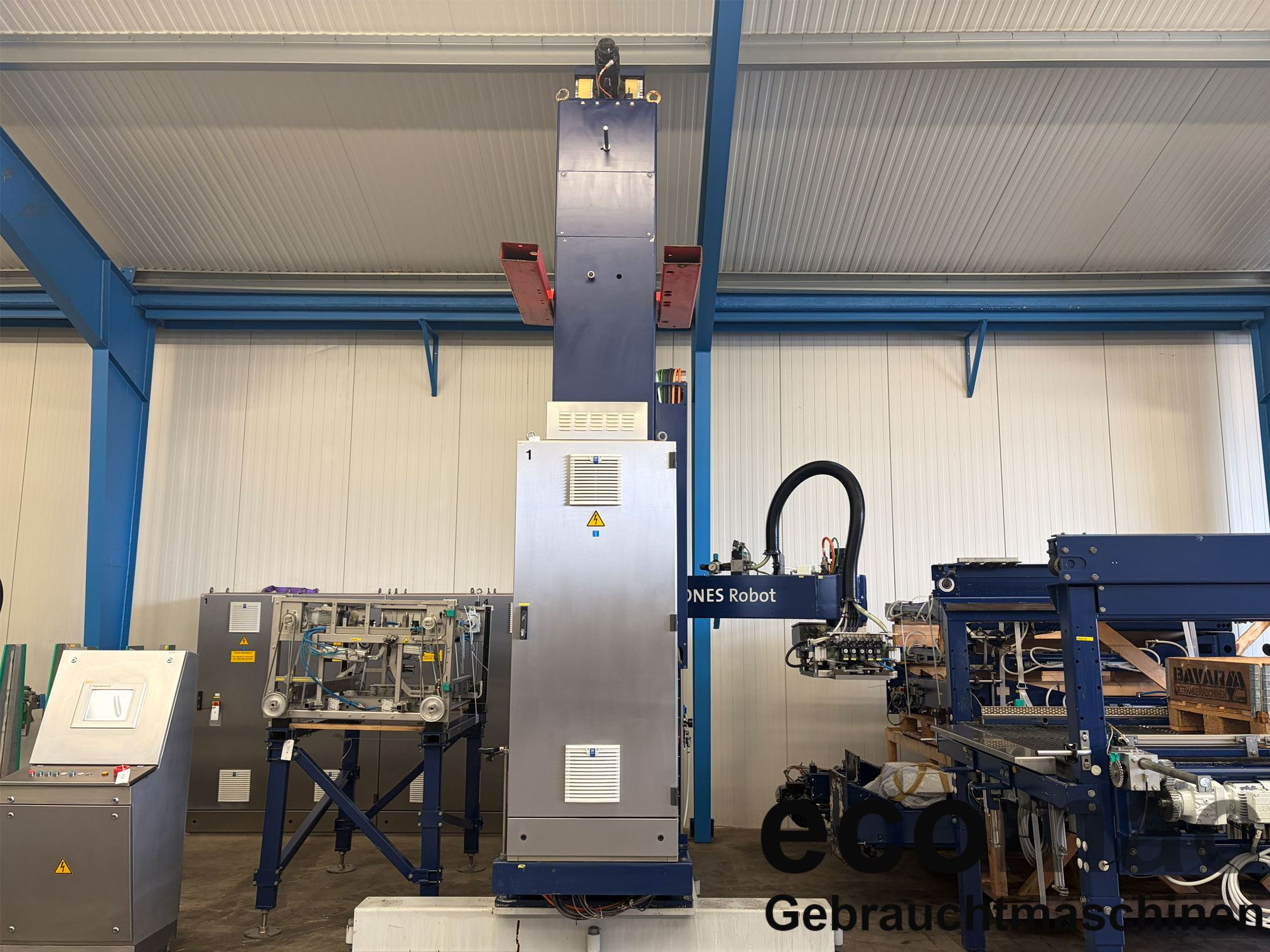

| lifting unit with column and carriage | |
| 3-axis swivel arm | |

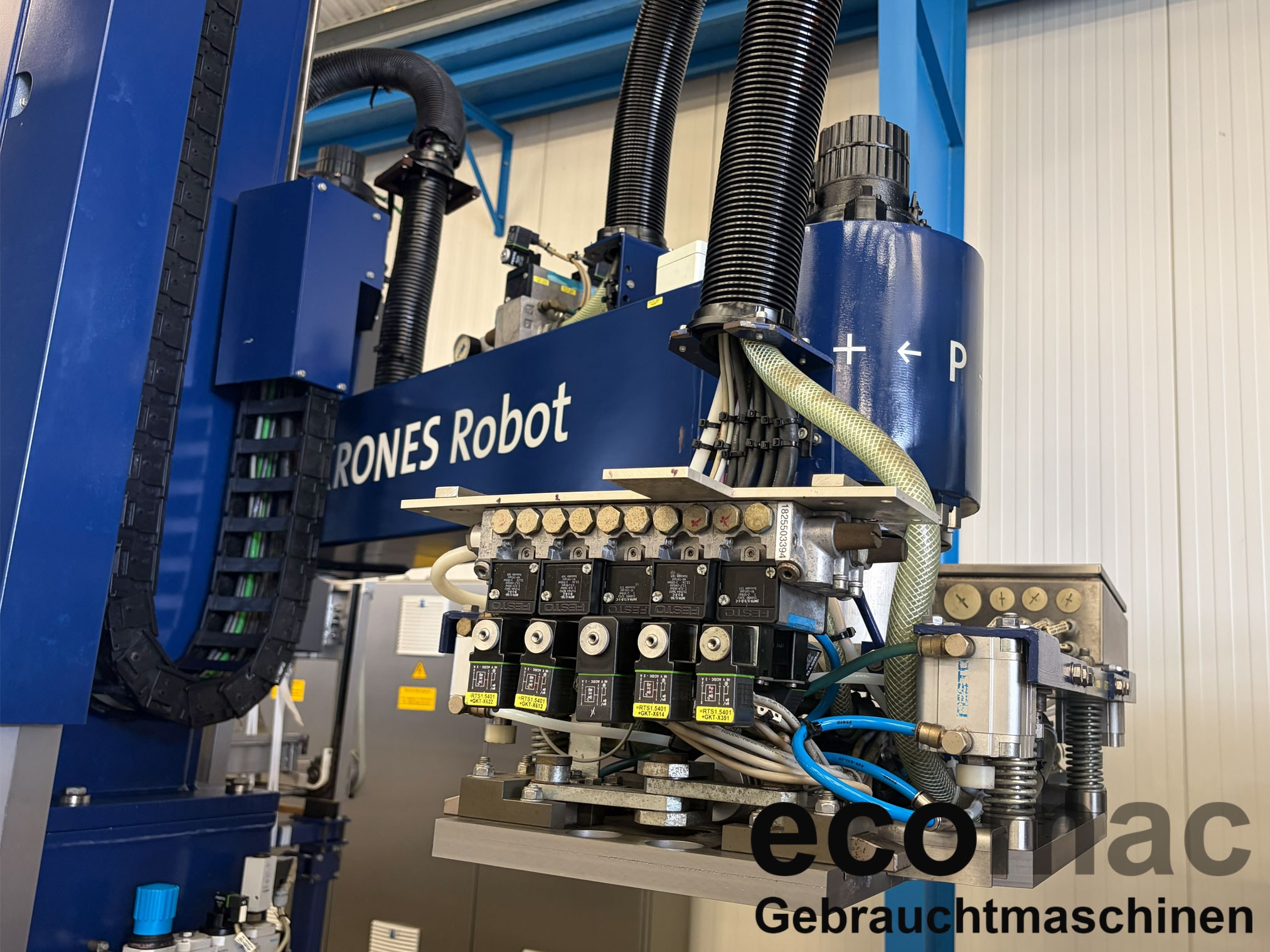

| shutter gripper system with fully automatic quick-change system | |
| layer pad inserter | |
| Pallet | Euro pallet 1.200x800 mm |
| Euro half pallet 600x800 mm | |
| Lubrication | lubrication rail |
| Operator | 10,4" color display with B&R ZenOn |
| Control System | Siemens S7-300 |
| Electrical data | 230V/400V, 50Hz |
| Accessories | pallet conveyor (chain and roller) |
| dual pallet discharge | |
| empty pallet magazine |
Details
Number
10-25237
Model
Robot 3A
Performance
240 layers/h (nominal)
Equipment
3x2 Shrinkpack on Euro pallet
Year
2004
Delivery
promptly
