Used repacking line # 10-25093
ecomac Gebrauchtmaschinen GmbH offers for sale a promptly available repacking line by Krones, made in 2019. The line output amounts to 45 euro pallets per hour for a 1,5l shrink pack.
Further information can be found in our specification under “Download PDF” or is also available upon request.
| Equipment | PET shrink pack 3x2 |
|---|---|
| processing of tray shrink packs possible (cans) | |
| pallet infeed without mother pallets for euro and half pallets | |
| palletizing on euro, half and industrial pallets | |
| pallet discharge with or without mother pallets for half pallets | |
| Performance | 45 euro pallets/h @ 1,5l shrink packs |
| 3.700 packs/h | |
| 180 layers/h | |
| Electrical data | 400 V - 50 Hz |
| Control system | Siemens S7 |
| Language | german / english |
| Control cabinet | free-standing, sheet steel |
| MACHINES: | |
| Pallet conveyor | Krones PALCO S |
| with roller and chain conveyors, turning stations and corner transfer units | |
| transfer car to 4 possible unloading lines | |
| double pallet infeed for unloading | |
| 2 pallet magazines | |

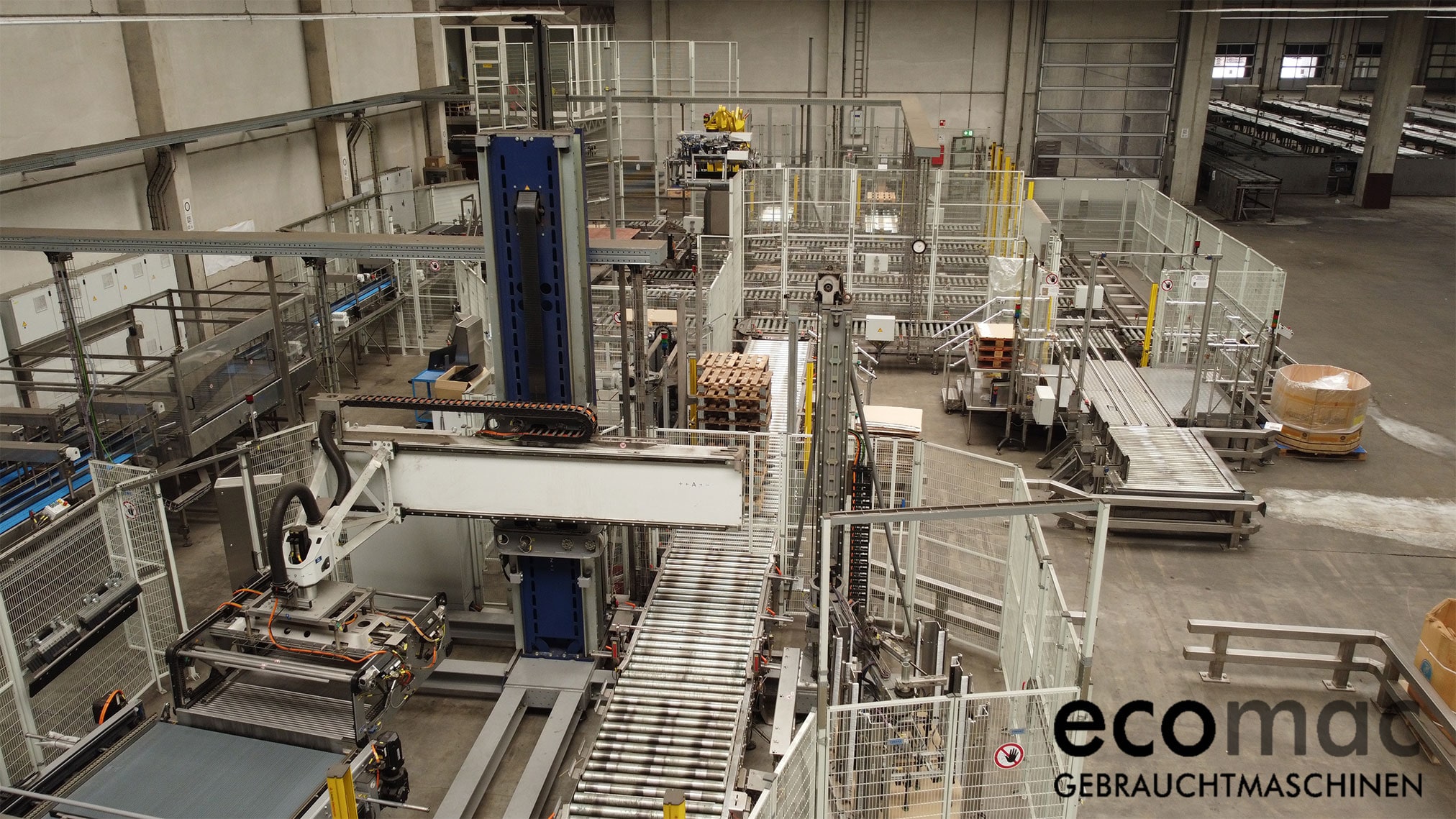

| Depalletizer | Krones ROBOGRIP 4A |
| 4-axis robot on pedestal (concrete foundation) | |
| bar gripper head type Unigripper for depalletizing complete layers | |
| unloading from 4 infeed lanes onto central discharge table | |
| packs discharged single lane onto flush-grid belt | |
| automatic gripper head coupling | |
| control panel with colour touch screen | |
| separate wall-mounted control cabinet | |
| fence guarding with safety P.E. sensors | |
| lubrication via lubrication terminal | |
| Layer pad remover | free-standing with vacuum gripper system (two-part) |
| layer pad storage on pallet conveyor | |
| (additional layer pad magazine available) | |
| Pallet conveyor | Krones PALCO S |
| with roller and chain conveyors, turning stations and corner transfer units | |
| transfer car for empty pallets to palletizer, to pallet magazines or single discharge for layer pads | |
| Pack conveyor | Krones MULTICO |
| flush-grid belt with roller guide rails | |
| line distributor from 1 to 4 lanes | |
| SEW drive Movigear | |
| section partly 4-lane up to merging, then single-lane | |
| adjustable railing and supportive device with crank | |
| single-lane pack infeed into Robobox | |

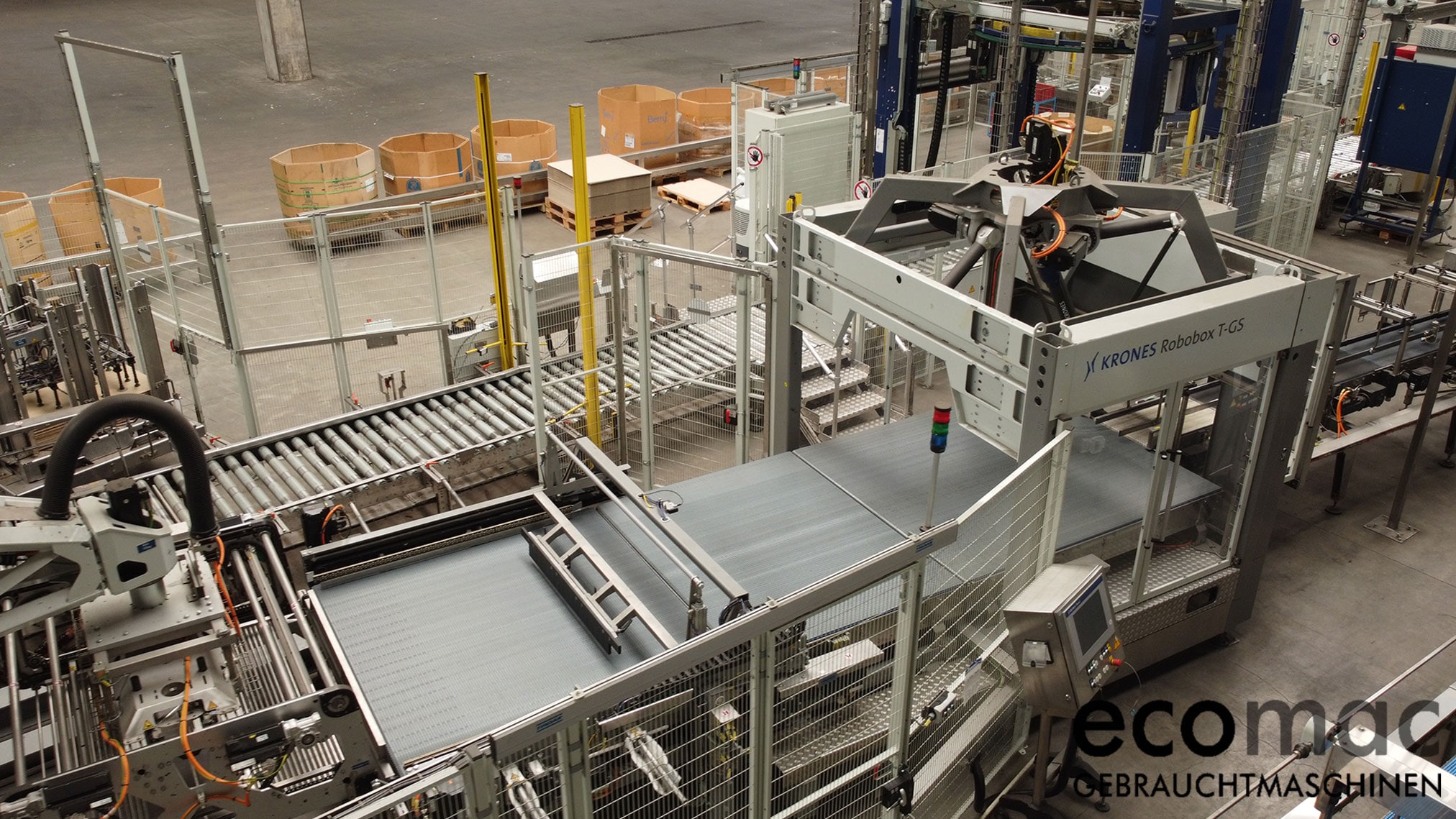

| Robobox (grouping) | 1 module: flush-grid belt and pack centering |
| Palletizer | Krones MODULPAL PRO 2A |
| full-layer processing | |
| motorised head rotation, cross member for gripper head carrier | |
| shutter head1400x1100 with steel rollers and automatic guide adjustment | |
| operator panel with coulour touch screen | |
| separate control cabinet | |
| lubrication via lubrication terminal | |
| free-standing machine guard | |
| Layer pad inserter | fixed gripper system for half and full layer pads |
| table for full and half layer pads | |
| Pallet magazine | |

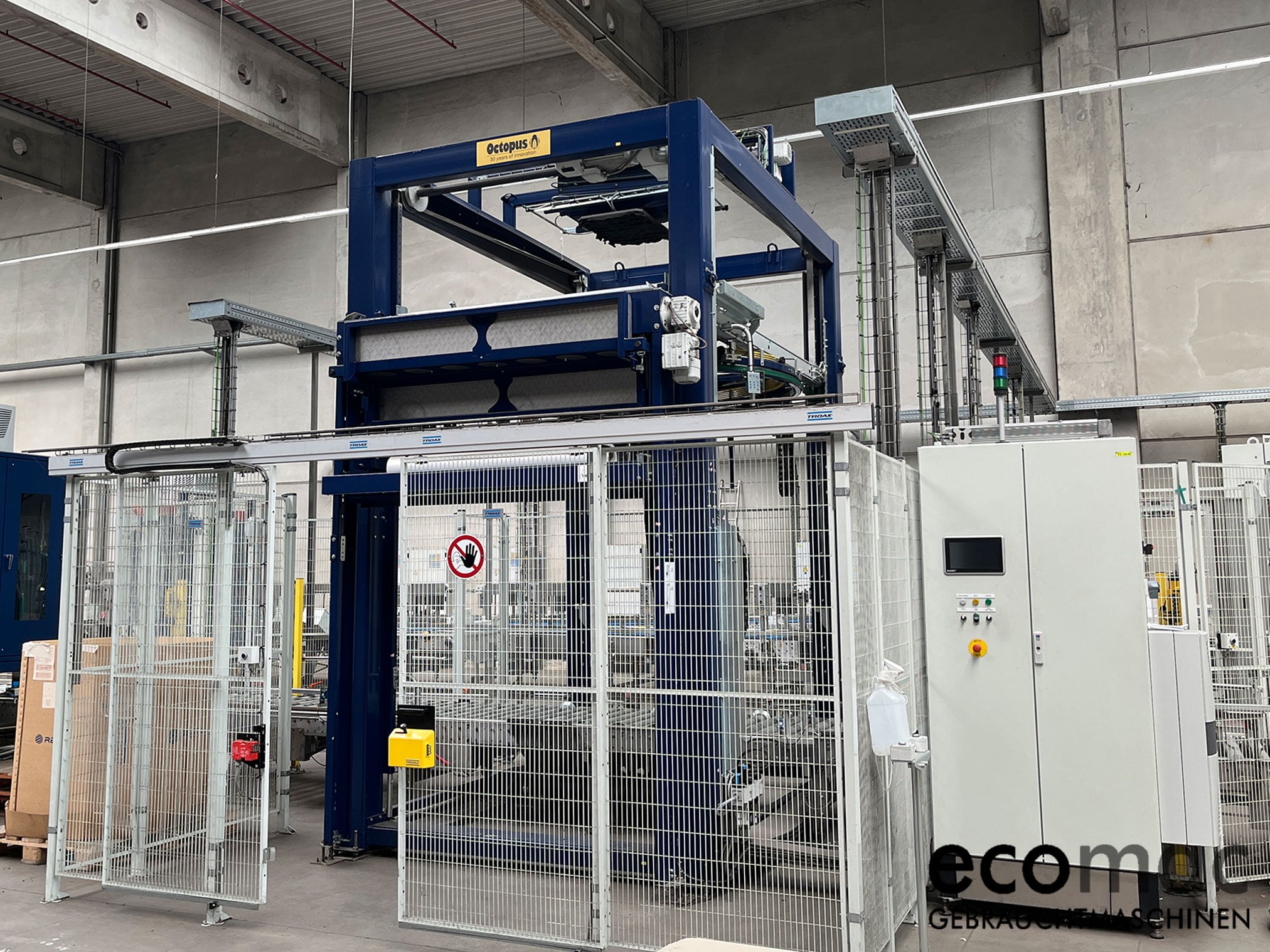

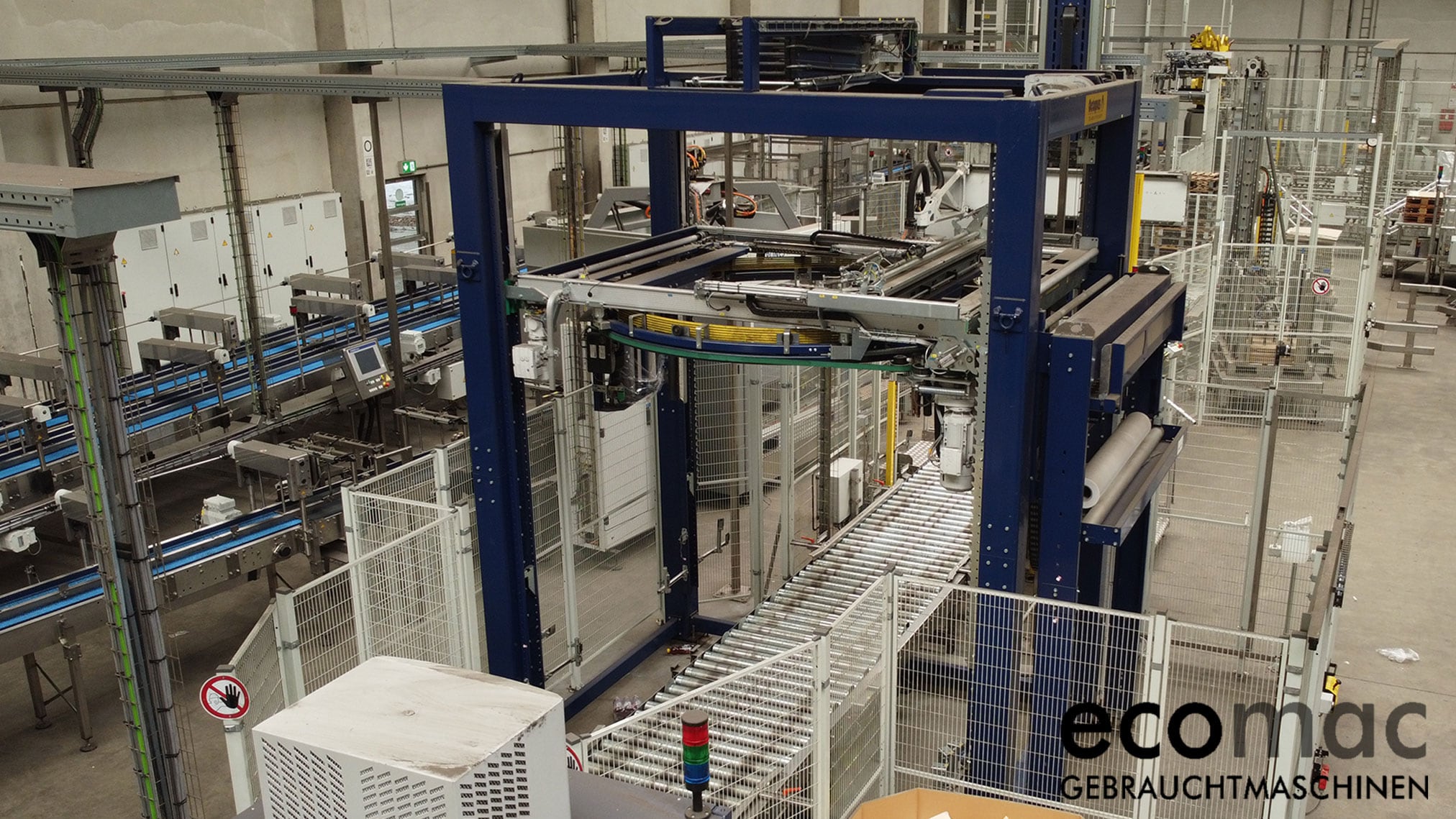

| Pallet wrapper | Haloila Octopus 1850T |
| with foil cover sheet and down-holding unit | |
| Ppallet lifting function | |
| free-standing fence guarding | |
| Pallet labelling | 2 x Logopak |
| 1.: type 920 P | |
| incl. 2D scanner type Cognex | |
| label format A5, 1 label portrait | |
| labelling on pallet side | |
| 2.: type 920 DK-R | |
| incl. 2D scanner | |
| label format A5, 2 labels portrait | |
| labelling on side and front | |
| Pallet conveyor | Krones PALCO S |
| with roller and chain conveyors, turning stations | |
| pallet magazine, double full pack pallet discharge | |
| Accessories | higher level control system |
| with separate control S7-300 and Zenon Touch V6.22 | |
| with separate operator panel | |
| sub-distribution | |
| line diagnostic | |
| network technology with VPN router available |
Details
Number
10-25093
Product
Krones
Model
Used repacking line
Performance
45 euro pallets/h @ 1,5l shrink pack
Equipment
PET shrinkpack 3x2, tray shrink packs possible (can)
Year
2019
Delivery
promptly
Direction
pallet - lengthwise; pack - across
Download
Download Sheet #10-25093Download entire machine list
